Vario & flex corners

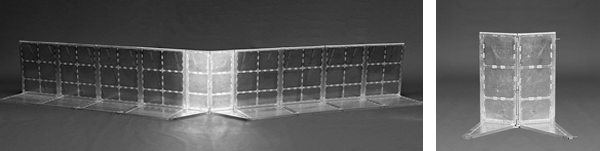

VARIO CORNER

A middle hinged corner section with partial footplate and braces, the Vario allows barrier designs to be shaped in any angle without compromising system strength. This section allows for creating a variable angle in a barrier line, ranging from -60° to +60°. Ideal for use on secondary barricade lines.

Vario corner

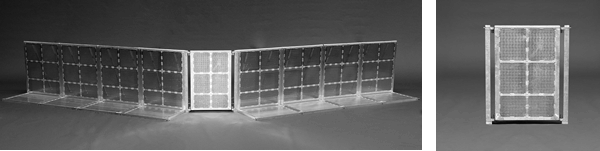

FLEX CORNER

A double hinged corner section without footplate, the flex is solely a vertical part, to be connected to adjoining barrier sections. This enables the flex to angle in any shape wanted, varying from -90° to +90° and has the limited option to negotiate height and width. Ideal to go around camera platforms or mix positions.

Flex corner

TECHNICAL SPECS VARIO

  • Same material specifications and looks similar to the straight barrier
  • Enables barrier designs to be shaped in variable angles
  • Angles ranging from -60° to +60°
  • Partial floorplate and braces secure strength of the section
  • Set angle fixation and additional connection upright to floorplate by one built-in bolt
  • Connects to adjoining section by one single bolt
  • Also available with black upright
  • Use in high crowd pressure areas:



TECHNICAL SPECS FLEX

  • Same material specifications and looks similar to as the straight barrier
  • Angles from -90° to +90°
  • Attached to adjoining barrier section with a single bolt and fixed coupling in top rail
  • No floorplate
  • Able to negotiate small height and width differences
  • Also available in black
  • Use in high crowd pressure areas:
