A fixed corner barrier for the front of the stage

3D view: barrier line with a Fixed Corner 22.5°
01 / 04 · Angle

The angle split over both ends

The 22.5° are not taken in one joint: each end of the corner is angled by 11.25°, so the Straight Sections on both sides meet it at the same angle. In the line, both versions take up the 1.00 m grid, as part of the Mojo stage barrier range.

3D view: positive and negative Fixed Corner 22.5° side by side
02 / 04 · Versions

Positive or negative, pink or white

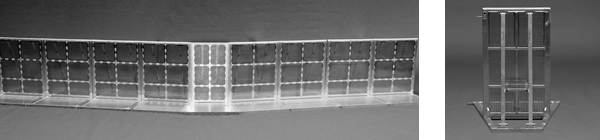

A positive corner turns the line away from the crowd, usually towards the stage, and carries a pink mark. A negative corner turns it towards the crowd, usually away from the stage, and carries a white mark. The mark sits on the braces, so the two versions can be told apart on site.

3D view: rear of a Fixed Corner 22.5° with its step
03 / 04 · Construction

Closed floor plate, open frame behind

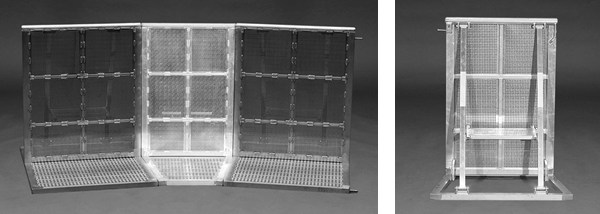

In front of the upright, the aluminium floor plate is closed and ends in a ramp towards the crowd; behind it, an open frame carries the rear step. The upright is perforated with 10 mm holes on a 15 mm grid, and on the positive corner the middle panel is closed.

3D view: negative Fixed Corner 22.5° between straight sections
04 / 04 · Curves

Wide curves at catwalks and thrusts

Several corners can be combined in one line, also with the Fixed Corner 45°; the result is a wide, smooth curve. Small fixed steps like this are ideal around catwalks and thrusts in front of a stage. The Straight Section barriers between the corners set the radius: the more of them, the wider the curve.

In numbers

Four numbers, one corner

Most dimensions match the Straight Section, so the line keeps one level and one depth around the turn.

Crowd side

0.72m

Floor plate in front

The crowd stands on the same depth of floor plate as at the Straight Sections next to it.

Rear

0.33m

Step height

Security staff step up to the same height behind the corner as along the rest of the line.

Side edge

1.25m

Depth at the joint

Where the corner meets a Straight Section, both are equally deep, so the floor plates line up.

Upright

0.71 – 0.81m

Upright width

0.71 m on the positive and 0.81 m on the negative corner, 10 cm apart.

Technical data

Technical data Fixed Corner 22.5°

FeatureFixed Corner 22.5°
Angle+22.5° positive, −22.5° negative
Height1.20 m
Depth1.24 m positive, 1.23 m negative (1.25 m at the side edge)
Floor plate width front / backpositive 0.99 m / 0.50 m, negative 0.51 m / 1.00 m
Upright width0.71 m positive, 0.81 m negative
Floor plate in front of upright (side edge)0.72 m
Depth behind upright (side edge)0.51 m
Step height0.33 m
Weight30 kg
Materialaluminium; stainless steel braces on the negative corner, black-coated on the black version
Finishsilver or black upright
Connectionone bolt and two pins
Tested load5.08 kN/m (Lloyd's 2011), 5 kN/m (TÜV 2013)

Details can vary slightly between production series.

Certification

Independently tested

Lloyd's British Testing tested a positive and a negative specimen in 2011 to BS EN 13200-3:2005, report 030611-SB01, sheets 6 and 7, and TÜV Nederland certificate 2013-A-168-C1 names both versions. Each document applies only to the specimens tested.

All documents are on the certification page.

Lloyd's British Testing · 2
TÜV Nederland · 1
Lloyd's British Testing certificate 03.06.11 SB 01, sheet 6, Fixed Corner 22.5°, positive, 2011
Lloyd's British Testing certificate 03.06.11 SB 01, sheet 7, Fixed Corner 22.5°, negative, 2011
TÜV Nederland certificate 2013-A-168-C1 for the Mojo Barrier aluminium system
Test report 01 / 0322.5° positive cornerLloyd's British Testing, report 030611-SB01, sheet 6, 3 June 2011
Test report 02 / 0322.5° negative cornerLloyd's British Testing, report 030611-SB01, sheet 7, 3 June 2011
Certificate 03 / 03Certificate 2013-A-168-C1TÜV Nederland QA, TÜV NORD Group, 12 December 2013
