01 / 04 · Purpose
Cable runs across the crowd line
Cable runs often have to cross the barrier line. The Cable Gate takes them through it in an orderly way, at one fixed point in the line.
Loading 3D model … 0 %
Features
A cable gate for the barrier line

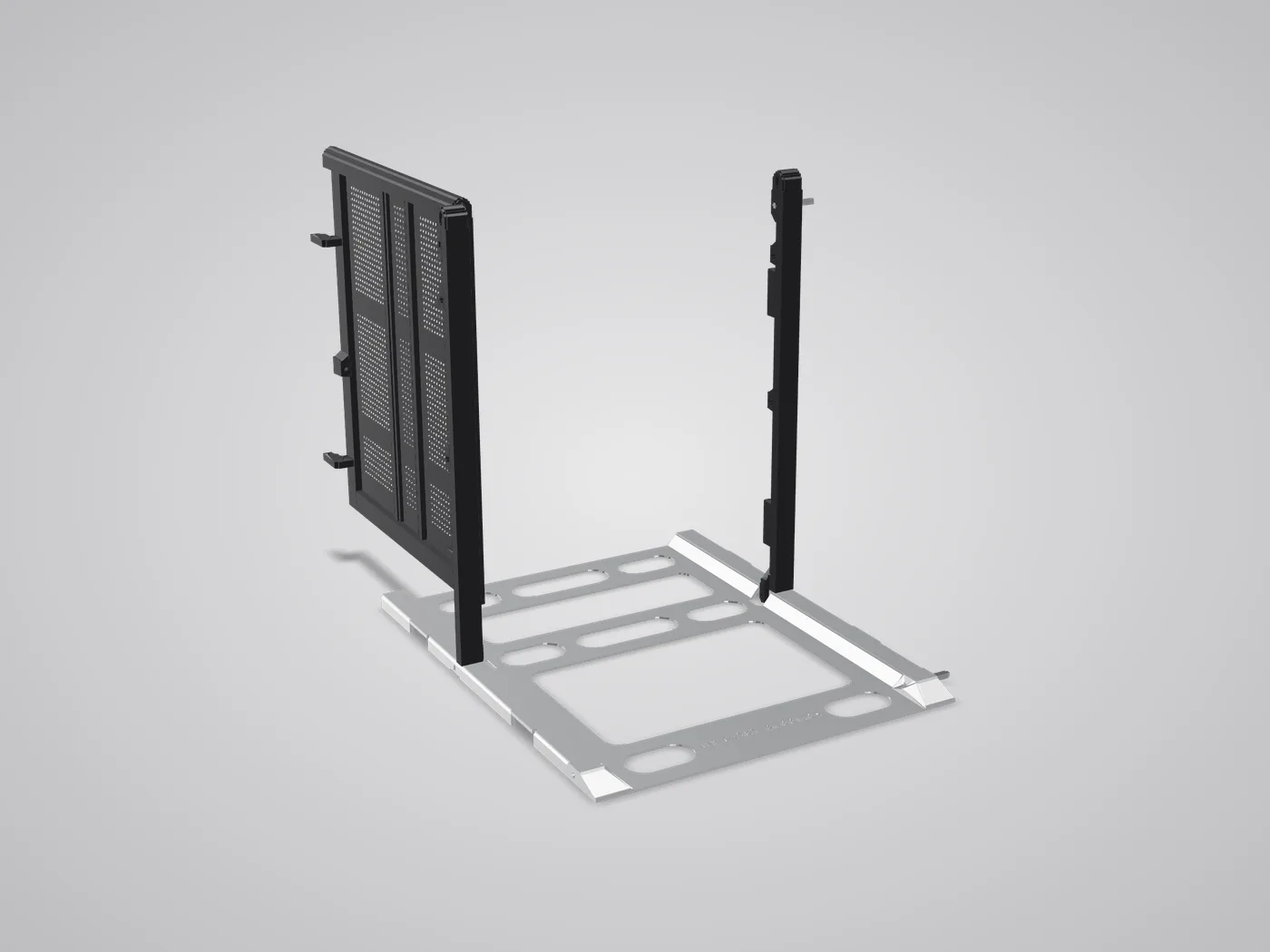

02 / 04 · Door
Hinges on the left or the right
The door hangs between two fixed uprights, and its hinge side can be left or right, depending on the layout.

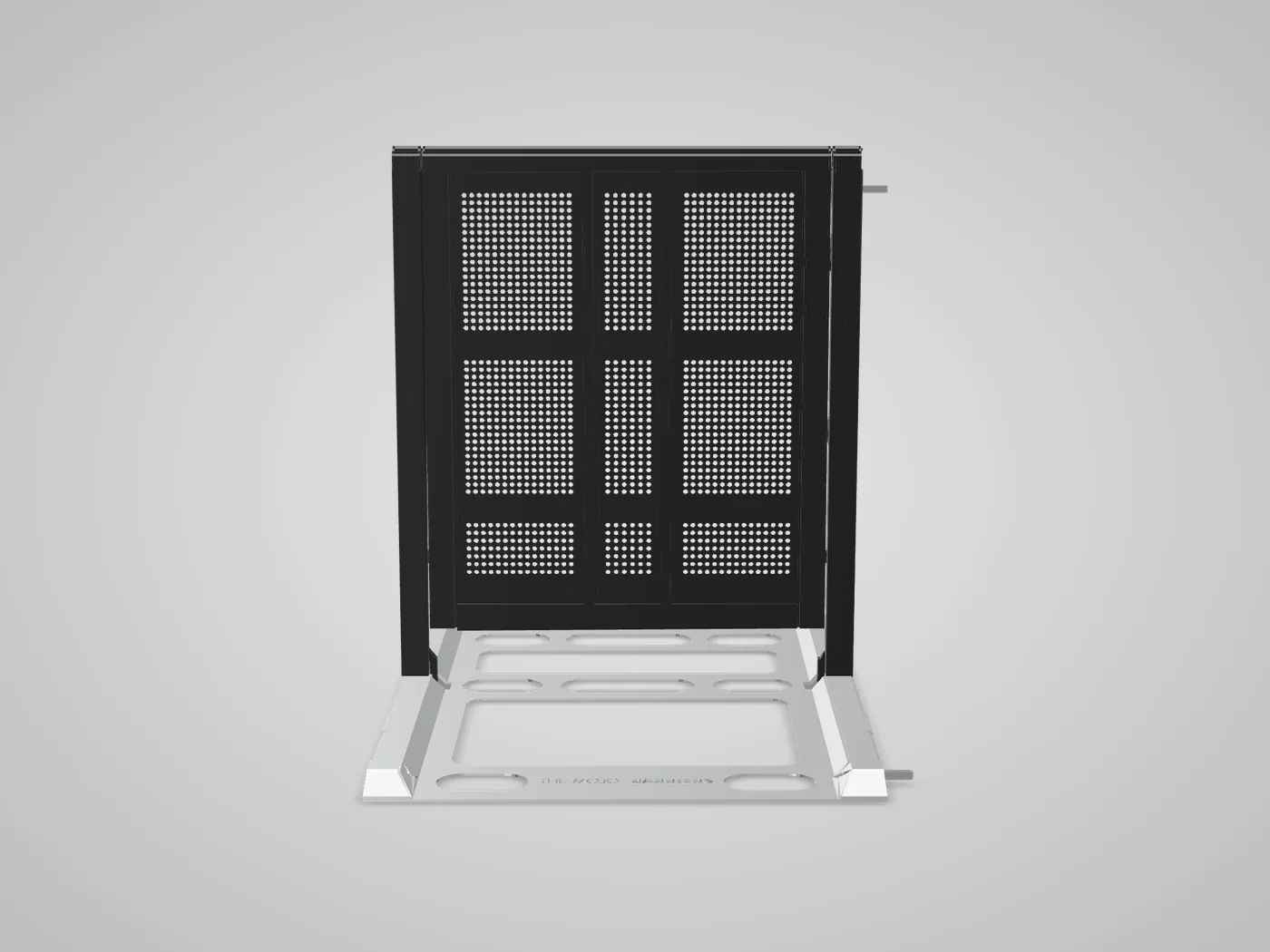

03 / 04 · Cable opening
An opening at ground level
The cable opening sits between the underside of the door and the floor plate. Cables pass through it from one side of the line to the other.

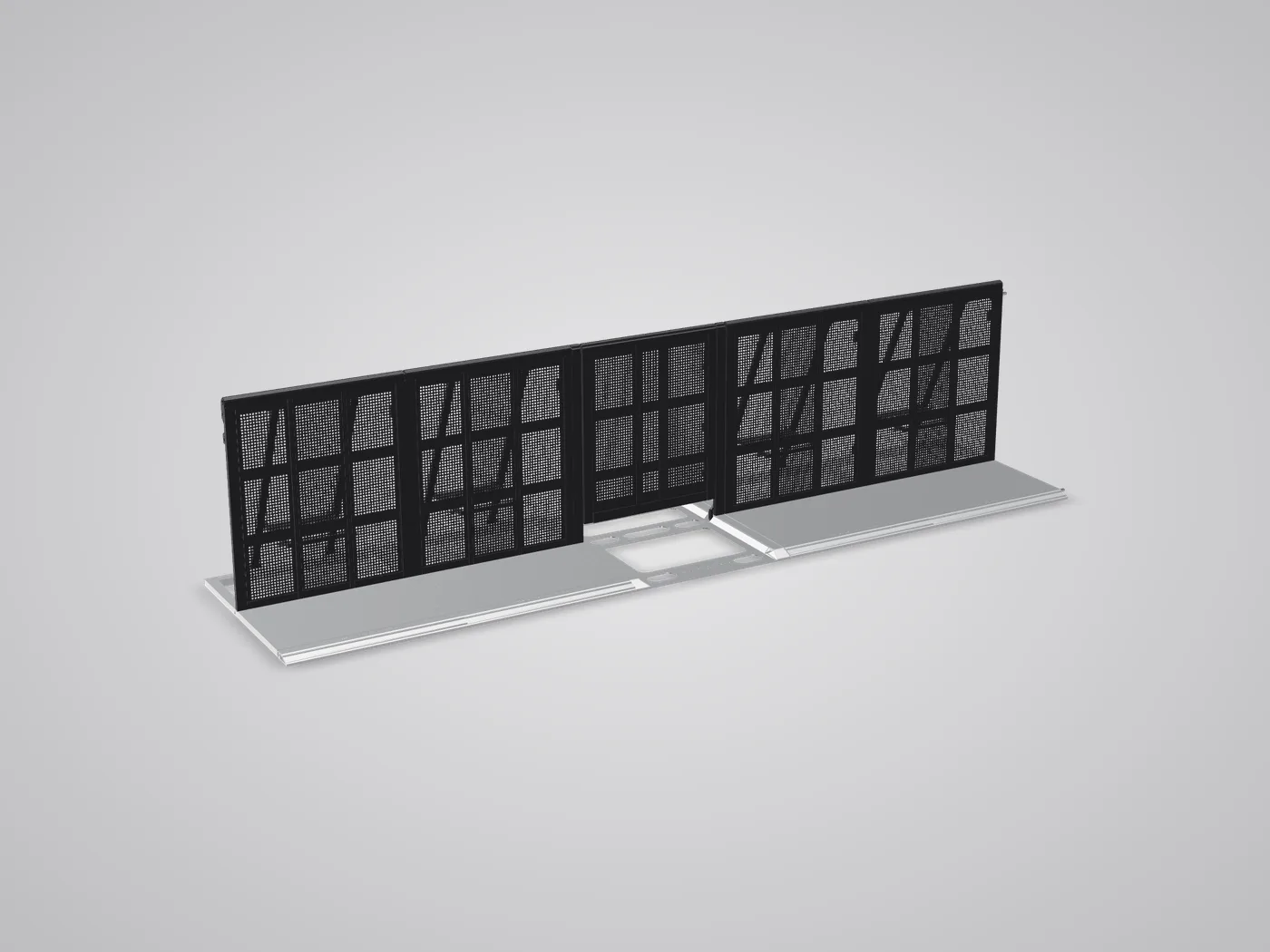

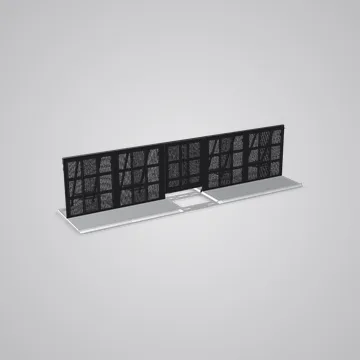

04 / 04 · System
Fits the line like a Straight Section
Part of the modular design of the Mojo Barrier system, the Cable Gate connects to the adjoining sections in the same way as a Straight Section.
In numbers
Three numbers for one section
Size of the Cable Gate itself.
Section
1.20m
Height
Height of the section.
Section
1.25m
Depth
Depth of the section across the line.
Line
1.00m
Working width
Length in the line on the 1.00 m grid; the connector reaches into the next section.
Technical data
Technical data
| Feature | Value |
|---|---|
| Grid length | 1.00 m |
| Height | 1.20 m |
| Depth | 1.25 m |

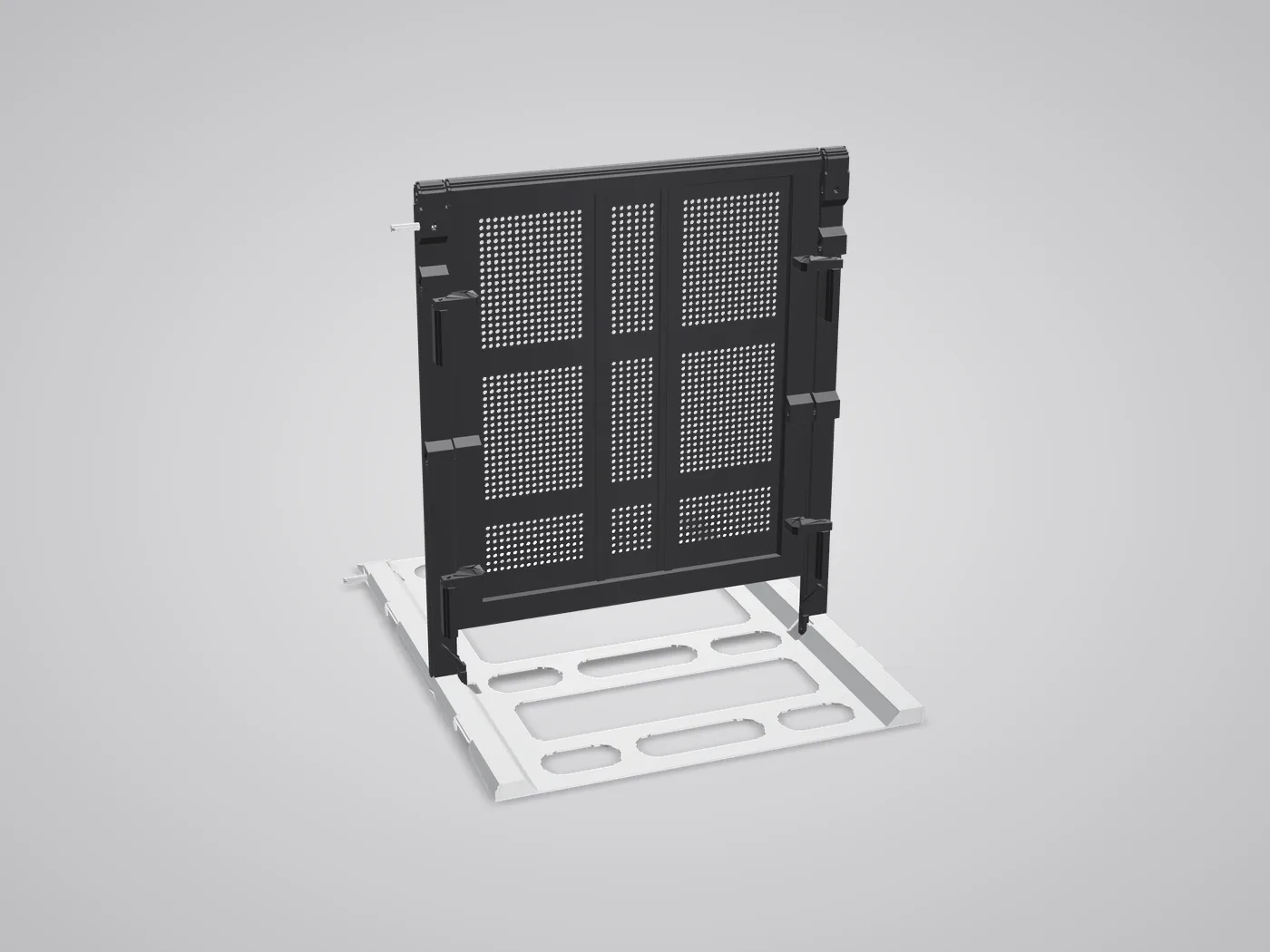

| Floor plate | 0.72 m in front, 0.51 m behind the door |
| Rear step | none |
| Door | 0.87 m, between two fixed uprights, hinge side left or right |
| Cable opening | 110 mm under the door, above the floor plate |
| Connection | like a Straight Section |
| Material | aluminium door and uprights, steel floor plate, stainless steel coupling pins |
| Finish | black; floor plate hot-dip galvanised (silver) |
| Weight | floor section 29 kg, upright 16 kg |
| Tested load | 5 kN/m, tested specimens |
| Certificate | TÜV-NL-2410-D-228, TÜV NORD Nederland |
Dimensions exclude the adjoining barrier sections. Tested load and certificate apply only to the tested specimens. Details can vary slightly between production series; your rental company will confirm the exact values.
System
Works with four modules
Straights
Straight Section
The basic section of the Mojo Barrier line. In black with a silver floor plate, it matches the finish of the Cable Gate.
Gates

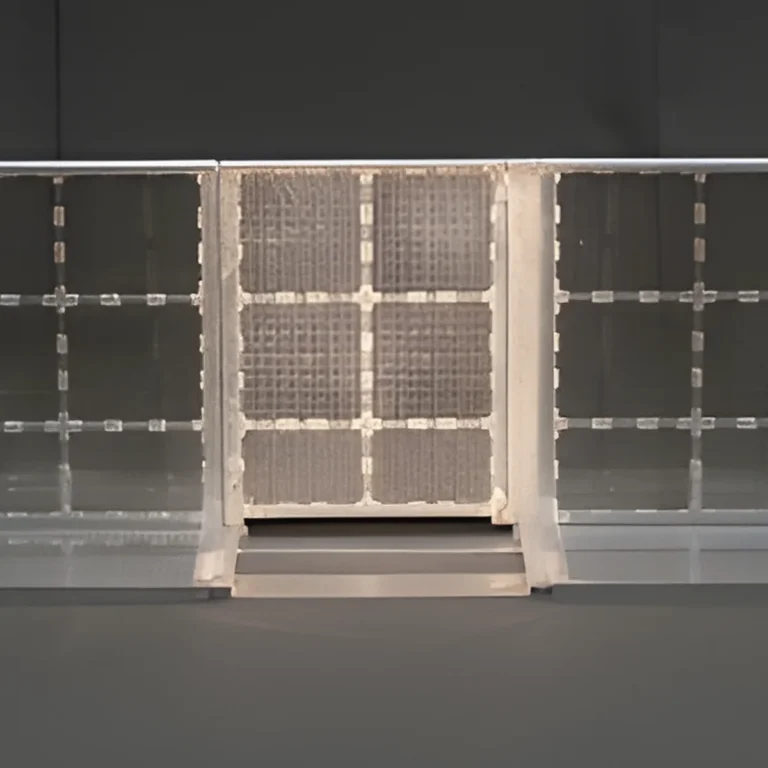

Snake Runner & Snake Gate
Hinged sections whose door opens for crew and cable runs, for cables up to 3.5 cm thick. The Snake Runner door is approx. 0.50 m wide.
Gates
Alternative Doors
A 1.00 m lockable door suitable for crew, pedestrians and most wheelchairs. Where the Cable Gate takes cables, the Alternative Doors take people on foot.
Gates

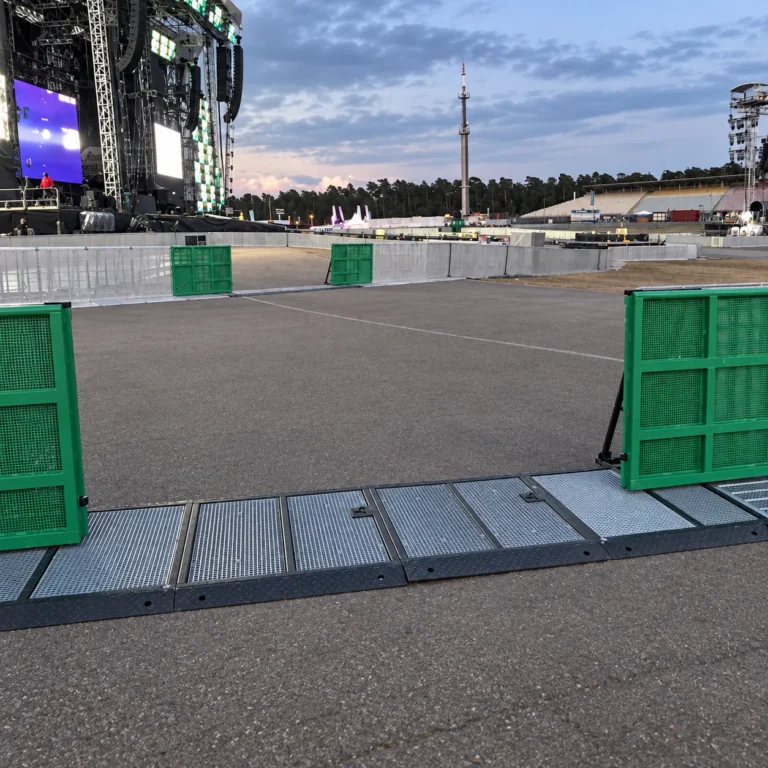

Mega Exit
Two doors that open the line to 3.00 m for emergency vehicles and trucks. The gate is opened by hand with one manual lever.
Certification
Tested to 5 kN/m
TÜV NORD Nederland certifies that tested specimens of the Cable Gate met the requirement below. MOJO Rental, which markets the barriers and is named on the certificate, is part of the MOJO Holding Group, like Mojo Barriers BV. The certificate applies only to the tested specimens and stays valid as long as the product specifications, production and conditions of use do not change significantly.
- Certificate
- TÜV-NL-2410-D-228
- Issued by
- TÜV NORD Nederland
- Issued
- 16 June 2025
- Valid until
- 16 June 2028
- Tested load
- 5 kN/m, tested specimens
- Basis
- IStructE Temporary Demountable Structures, 4th ed., §7.5
All documents are on the certification page.
Cable GateTÜV NORD · 2025
FAQ
Questions about the Cable Gate
Two contacts, depending on the question:
- Cable routes for your layout and hire: the rental company in your country
- Data sheets and product information: Mojo Barriers BV, by phone or email
A cable gate is a section of a temporary crowd barrier line with an opening at ground level, so cable runs cross the line at one point. Despite the name, it has nothing to do with the automatic steel-cable barriers that control vehicle access at car parks, loading zones and road entrances. With Mojo Barriers, this is the Cable Gate.
| Need | Module |
|---|---|
| cables through the line at one fixed point | Cable Gate, 110 mm opening |
| cable runs through a door that opens | Snake Runner, approx. 0.50 m door |
| cables and crew through a wider door | Snake Gate, 0.76–0.85 m door |
| crew, pedestrians and most wheelchairs | Alternative Doors, 1.00 m door |
| emergency vehicles and trucks | Mega Exit, 3.00 m opening |
- where cable runs cross the line
- the size of the cable bundle, against the 110 mm opening
- space for the floor plate on both sides of the line
- which side the door hinges should sit on
- stock at the rental company for the event dates
Yes, through the rental companies of the MOJO Holding Group, for festivals, concerts and other event sites with cable runs through the barrier line. For questions about cable routes in your layout or the data sheet, contact our team.
Hire
Find a Cable Gate near your event
Tell the rental company in your country where cables need to cross your barrier line. They place the Cable Gate at that point in the layout.
