01 / 03 · Sight screen
Panels at chosen points

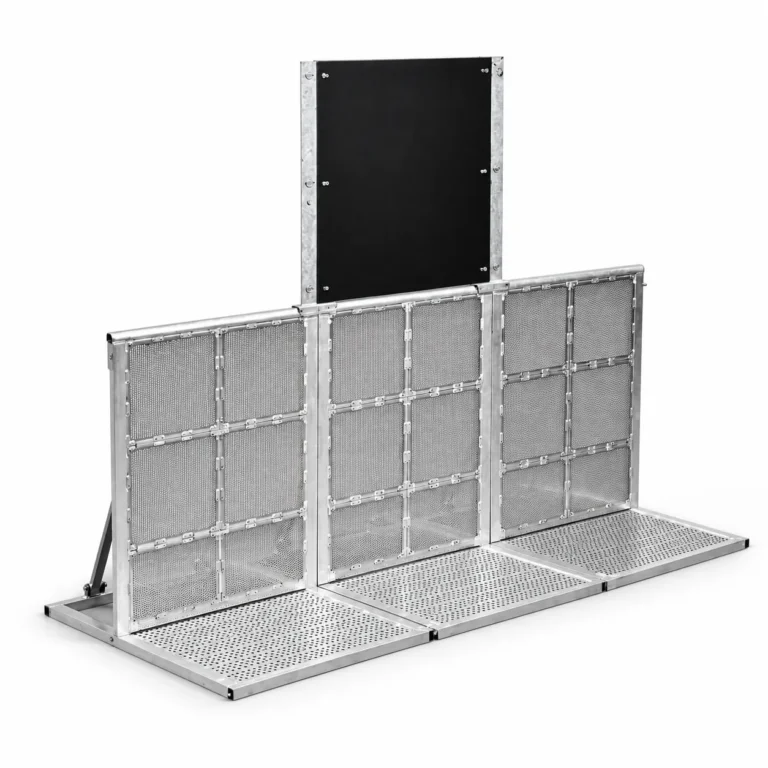

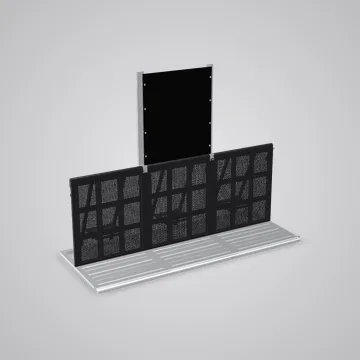

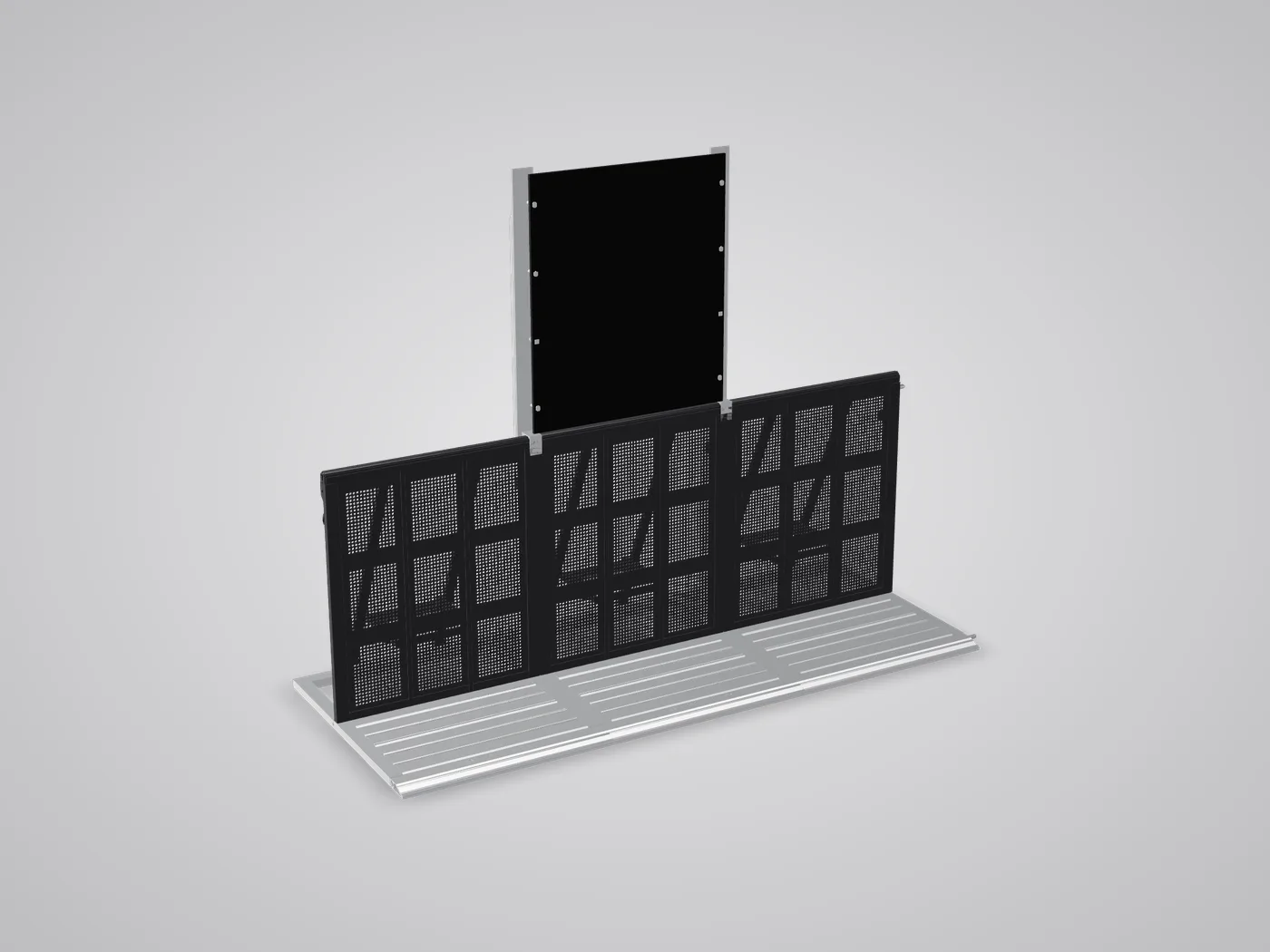

Also known as sightline kills, the panels sit on top of the barrier line at chosen points. There they are intended to block the view.
Loading 3D model … 0 %
Features
Crowd barrier accessories for the Mojo Barrier line

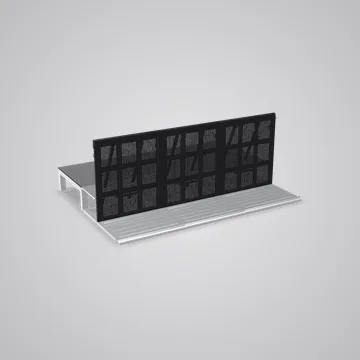

02 / 03 · Security walkway
One working surface behind the line

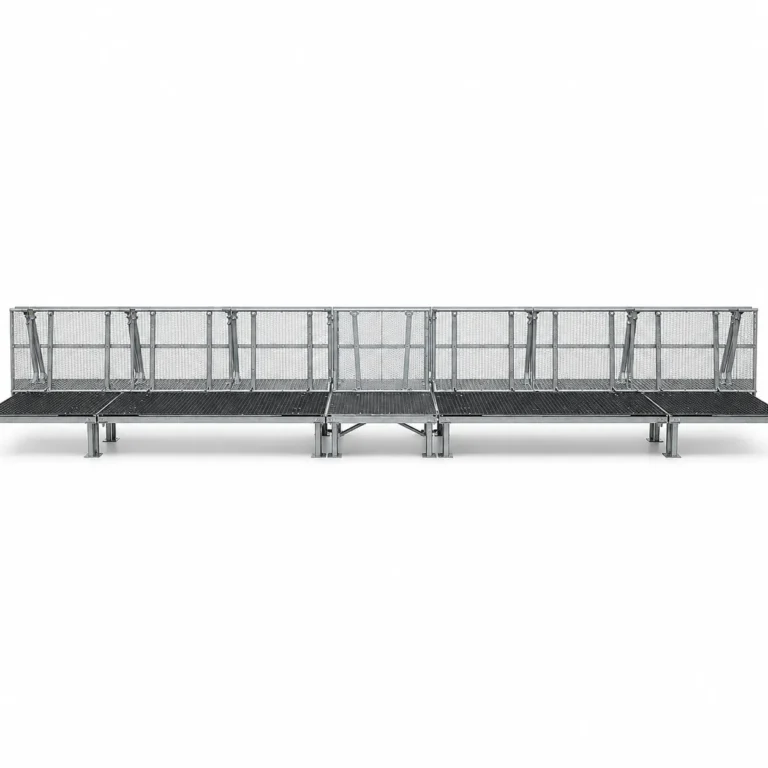

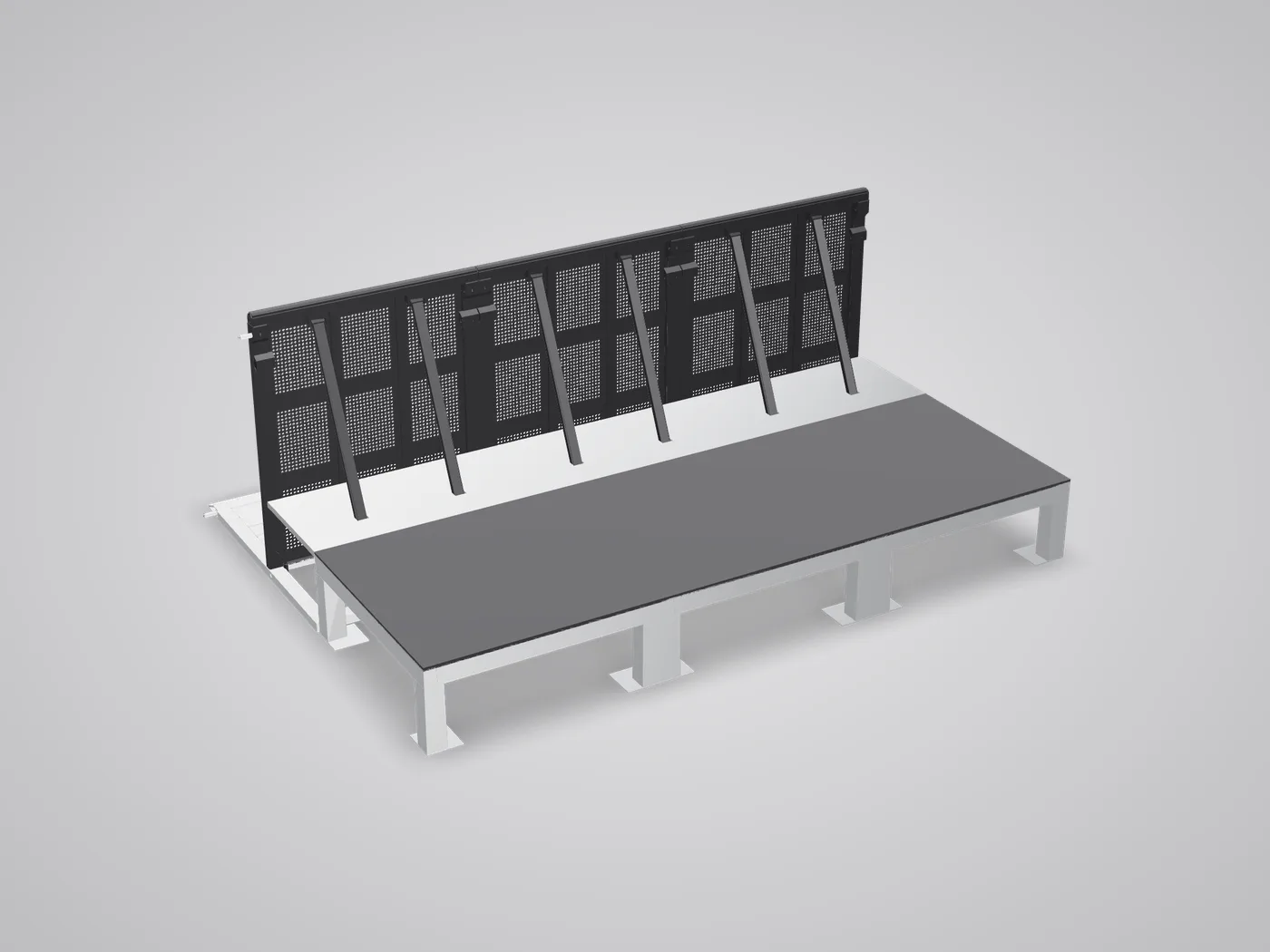

The security walkway is a continuous working platform at the back of the barrier line, corners included. Instead of the rear steps alone, security personnel and medical staff get a better view of the audience and better access to it.

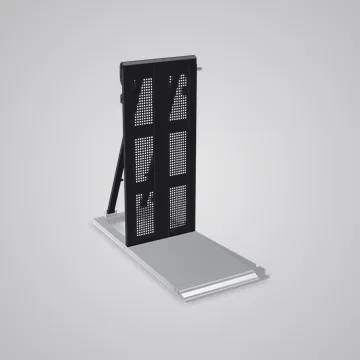

03 / 03 · Wedge 5.5°
Curves in front of a stage

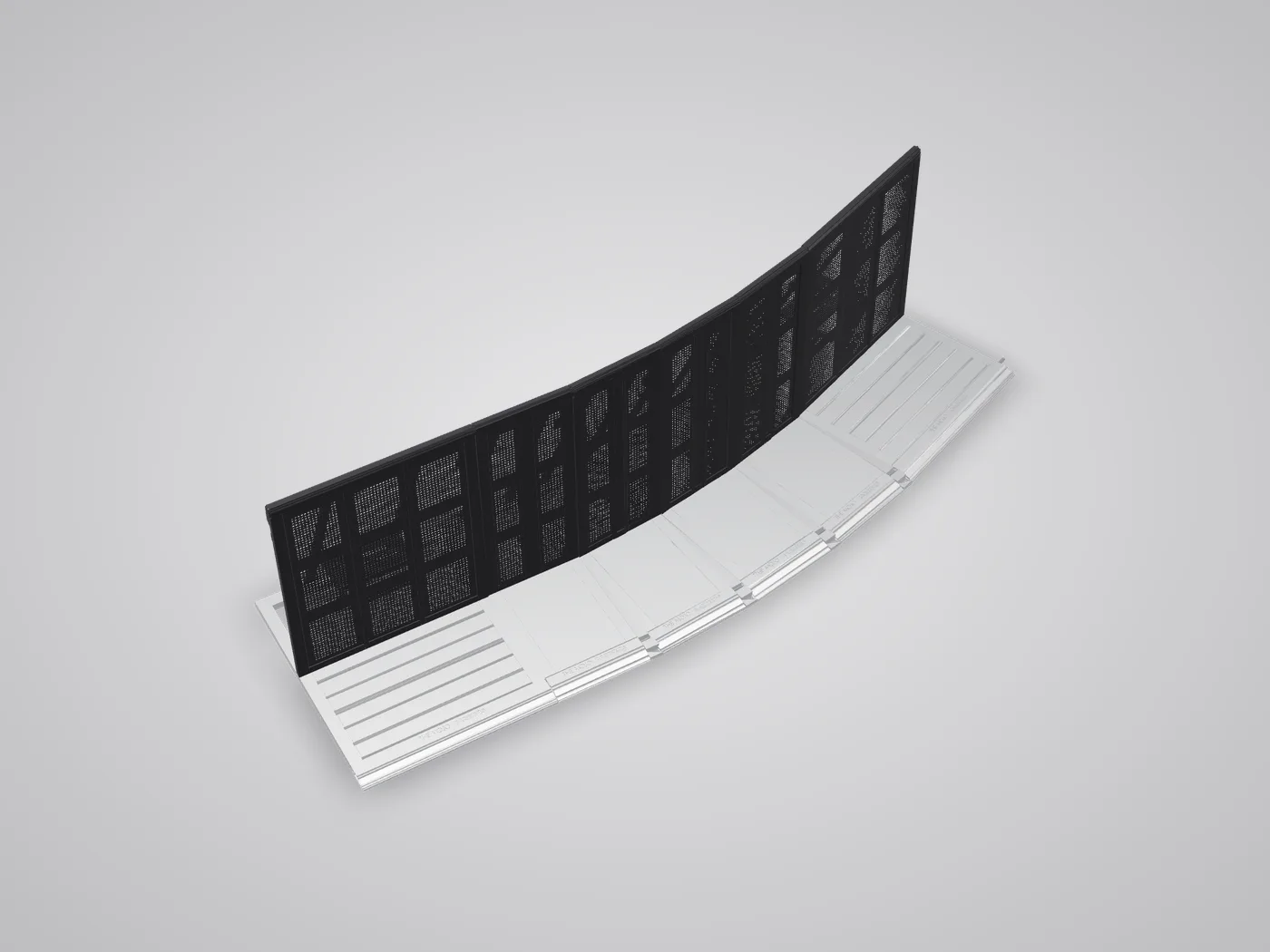

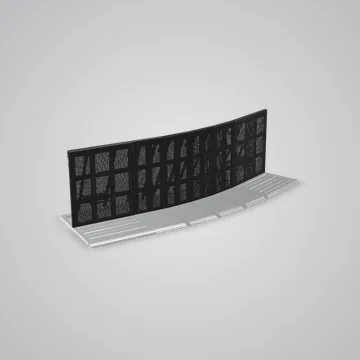

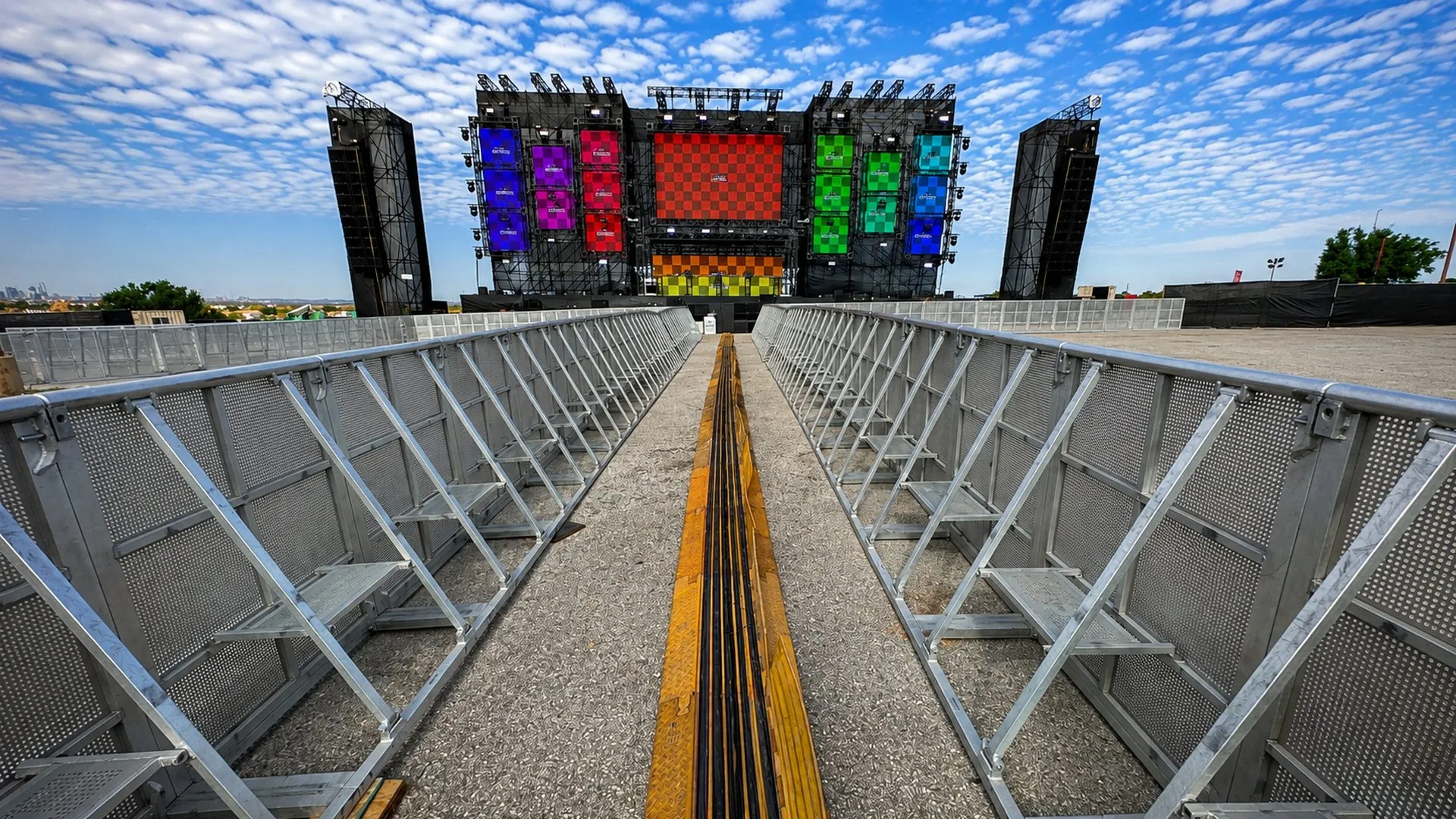

Wedges are narrow fixed corner sections that curve the whole barrier line gradually, for instance in front of a large stage.
In numbers
Three numbers, three add-ons
The key value of each add-on.
Sight screen
1.20m
Panel height
Height of the panels on top of the barrier line.
Security walkway
1.00m
Platform width
Width of the platform behind the line.
Wedge
5.5°
Fixed angle
Angle each wedge adds to the line.
Technical data
Security Features at a glance
| Feature | Sight screen | Security walkway | Wedge 5.5° |
|---|---|---|---|
| Size | 1.20 m high panels | 1.00 m wide platform | approx. 0.49 m wide, 1.25 m deep |
| Position | on top of the barrier line | behind the barrier line, corners included | within the barrier line |
| Purpose | intended to block the view at chosen points | view of the audience for security and medical staff | intended to curve the line gradually |
| Details | – | raised, no gaps | fixed 5.5°, double brace, no rear step; connection details vary by series |
| Material | on request | on request | aluminium, as the Mojo Barrier line |
| Weight | on request | on request | on request |
| Tested | no separate certificate | no separate certificate | Lloyd's British Testing 2011, 7.66 kN/m (test specimen) |
Details can vary slightly between production series; your rental company will confirm the exact values. – = not applicable. On request: value not yet published.
System
Paired with three crowd control barrier modules
Barrier line
Straight Section
The basic section of the Mojo Barrier line. Sight screens sit on top of it and the security walkway runs behind it.
Corners
Fixed Corner 22.5°
A fixed corner for turns of 22.5° in the line. The security walkway continues around corners like this one.
Corners
Fixed Corner 45°
A fixed corner for sharper turns than a wedge.
Certification
Wedge tested to BS EN 13200-3
Lloyd's British Testing tested a specimen of the 5.5° wedge to BS EN 13200-3:2005, and no permanent set was recorded. Certificates apply only to the test specimens named in them. Design details can differ between production series; your rental company will confirm which test documents apply to the units supplied. The sight screen and the security walkway have no certificate of their own.
- Tested part
- 5.5° positive fixed corner (wedge), test specimen
- Test body
- Lloyd's British Testing
- Report
- 030611-SB01, sheet 5
- Date
- 3 June 2011
- Standard
- BS EN 13200-3:2005
- Result
- 7.66 kN/m, requirement 5 kN/m, pass
All documents are on the certification page.
Wedge 5.5°Lloyd's British Testing · 2011
FAQ
Questions about the Security Features
Two contacts, depending on the question:
- Add-ons for your layout and hire: the rental company in your country
- Data sheets and product information: Mojo Barriers BV, by phone or email
They are three additions to the aluminium Mojo Barrier line, not crowd barrier covers, printed PVC mesh barrier jackets or clip-on kits for steel barriers and metal pedestrian barriers. Together with the Barrier Load Monitor System, they form the barrier systems range.
| Need | Add-on or module |
|---|---|
| block the view at one point of the line | sight screen |
| a better view of the audience and better access for staff | security walkway |
| a gradual curve, for instance in front of a large stage | wedge 5.5° |
| a clear change of direction | Fixed Corner 22.5° or 45° |
| a separate 2.4 m fence line | Mojo High Fence |
- at entrances
- at exits
- at the sides of stage areas
To create a curve, each wedge turns the barrier line by 5.5°, so the number of wedges sets how far the line curves: four wedges in a row, for example, turn it by 22° in total. Your rental company plans the curve with you, based on the stage and the layout of the site.
- the points where the view should be blocked
- the length of the walkway behind the line, corners included
- how far the line should curve in front of the stage, and the quantity of wedges for it
- who works on the walkway: security and medical staff
- stock at the rental company for the event dates
Yes, through the rental companies of the MOJO Holding Group, for festivals, concerts, sports events and other public events with a Mojo Barrier line, indoor or outdoor. For questions about the add-ons, the wedge test or the data sheet, contact our team.
Hire
Plan the add-ons for your barrier line
Tell the rental company in your country where the view should be blocked, where staff need a walkway and how the line should curve. They plan the add-ons for your layout.
