Features

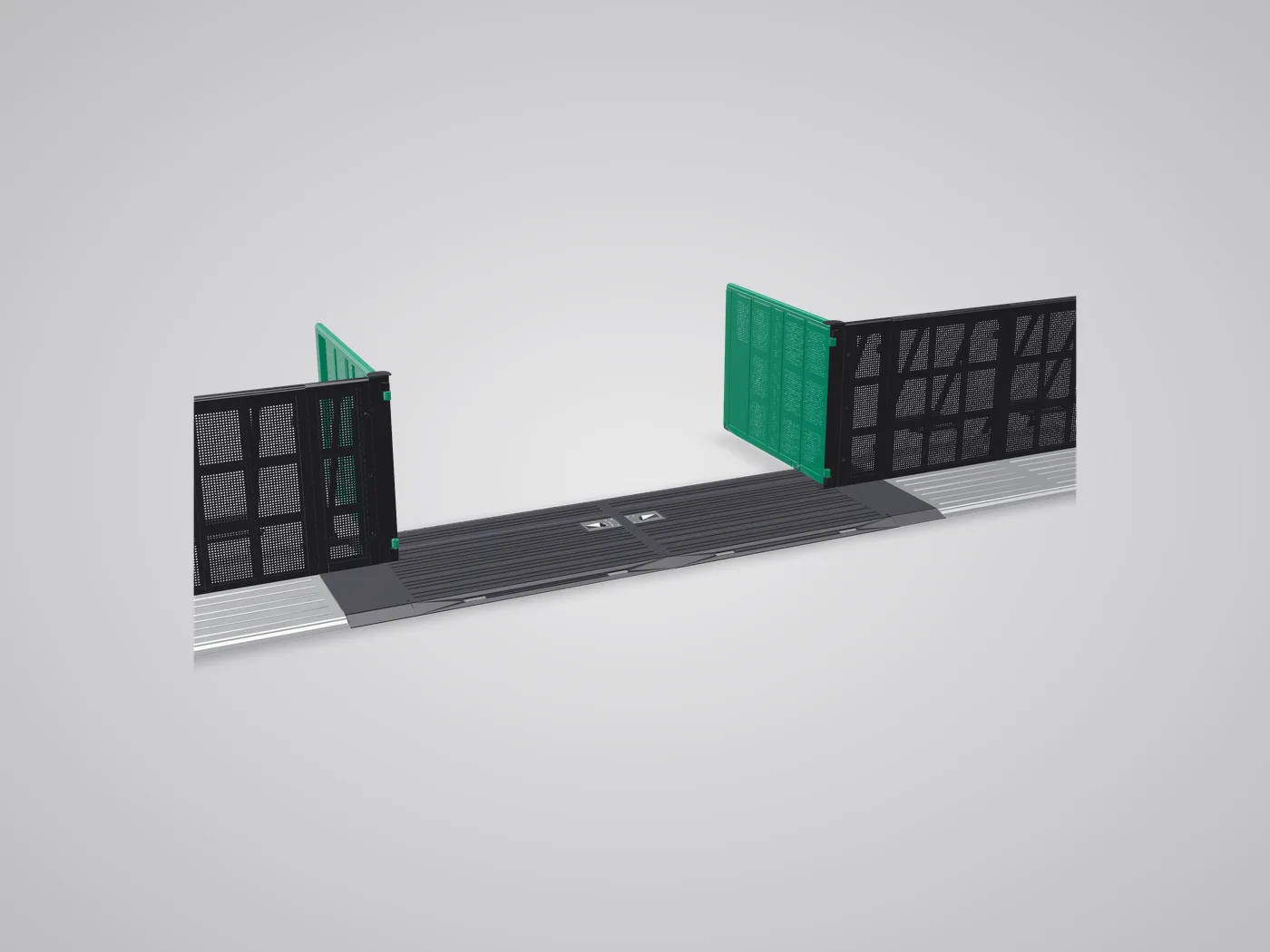

The Mega Exit opens a barrier line that is already set up, at one fixed point, so emergency vehicles such as fire engines and ambulances or trucks can drive through. The same opening also works as a wide exit, while the line on either side stays in place.

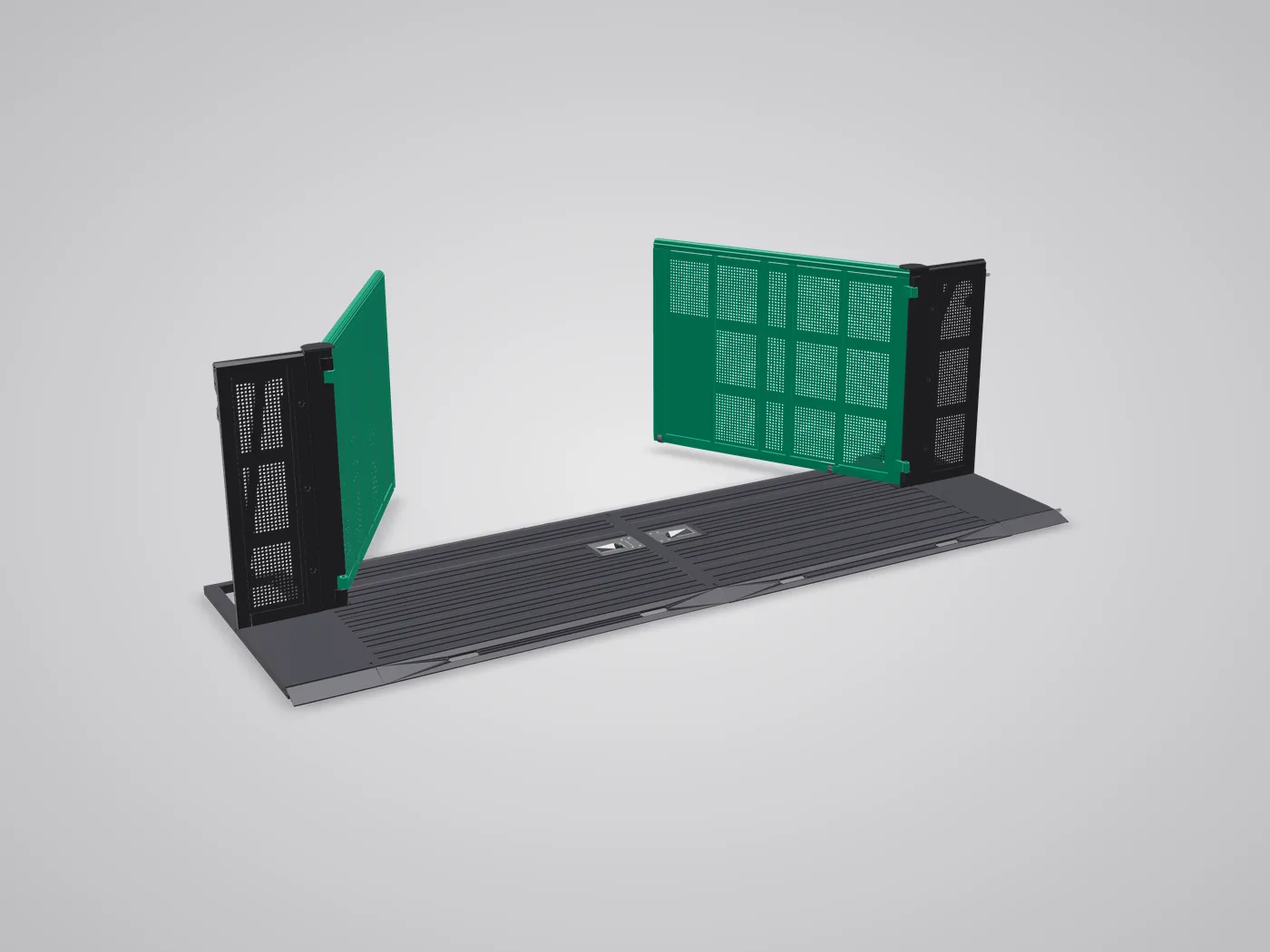

There are no automatic doors: the gate is opened by hand with a single manual lever. The doors swing in both directions, towards either side of the line. Once closed, the locking mechanism is simple: the two doors interlock in the middle.

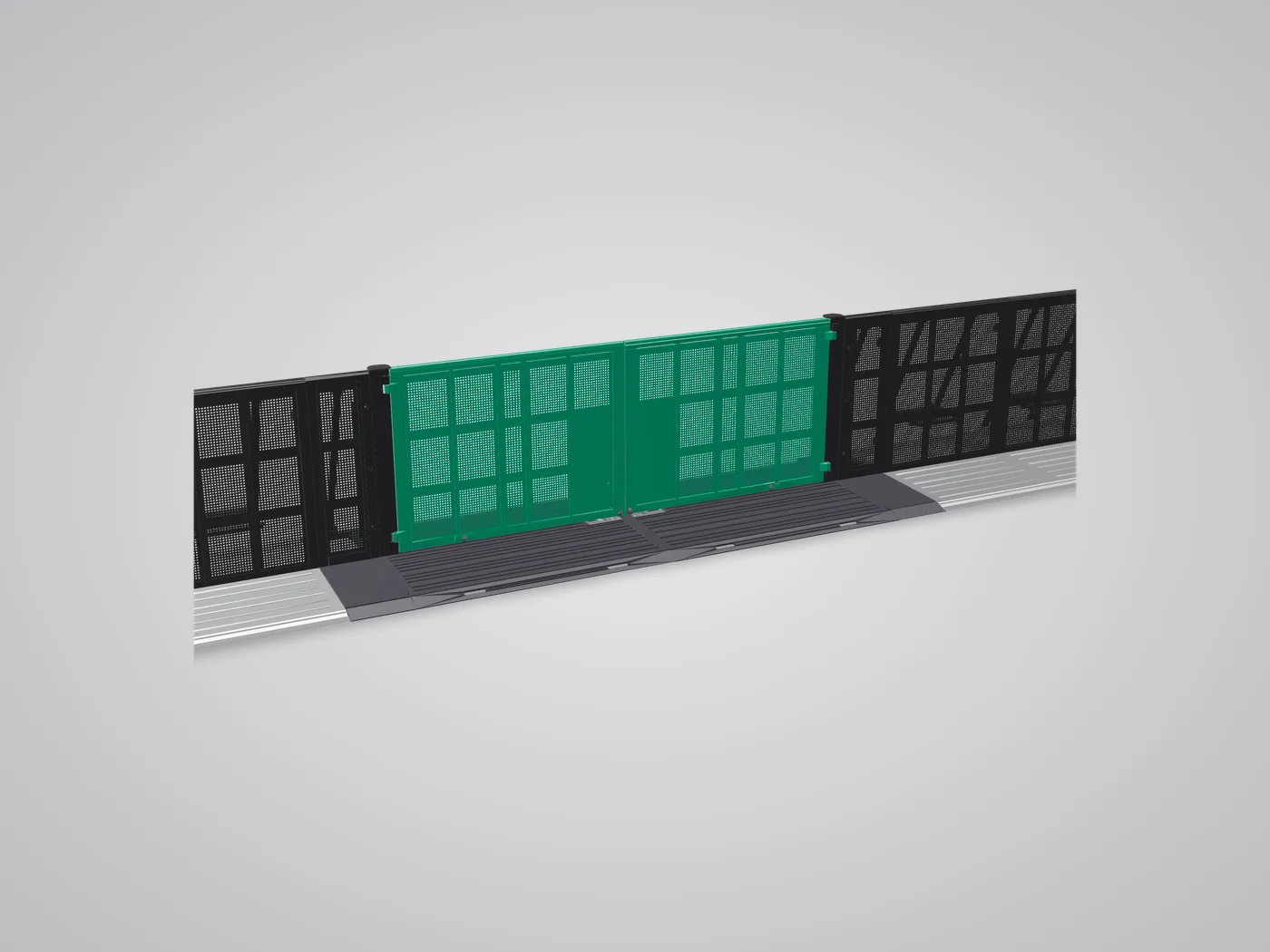

The Mega Exit is designed to sit within the barrier line and connects to the adjoining Mojo Barrier sections, such as the Straight Section. Security staff can control access through the line at this one point.

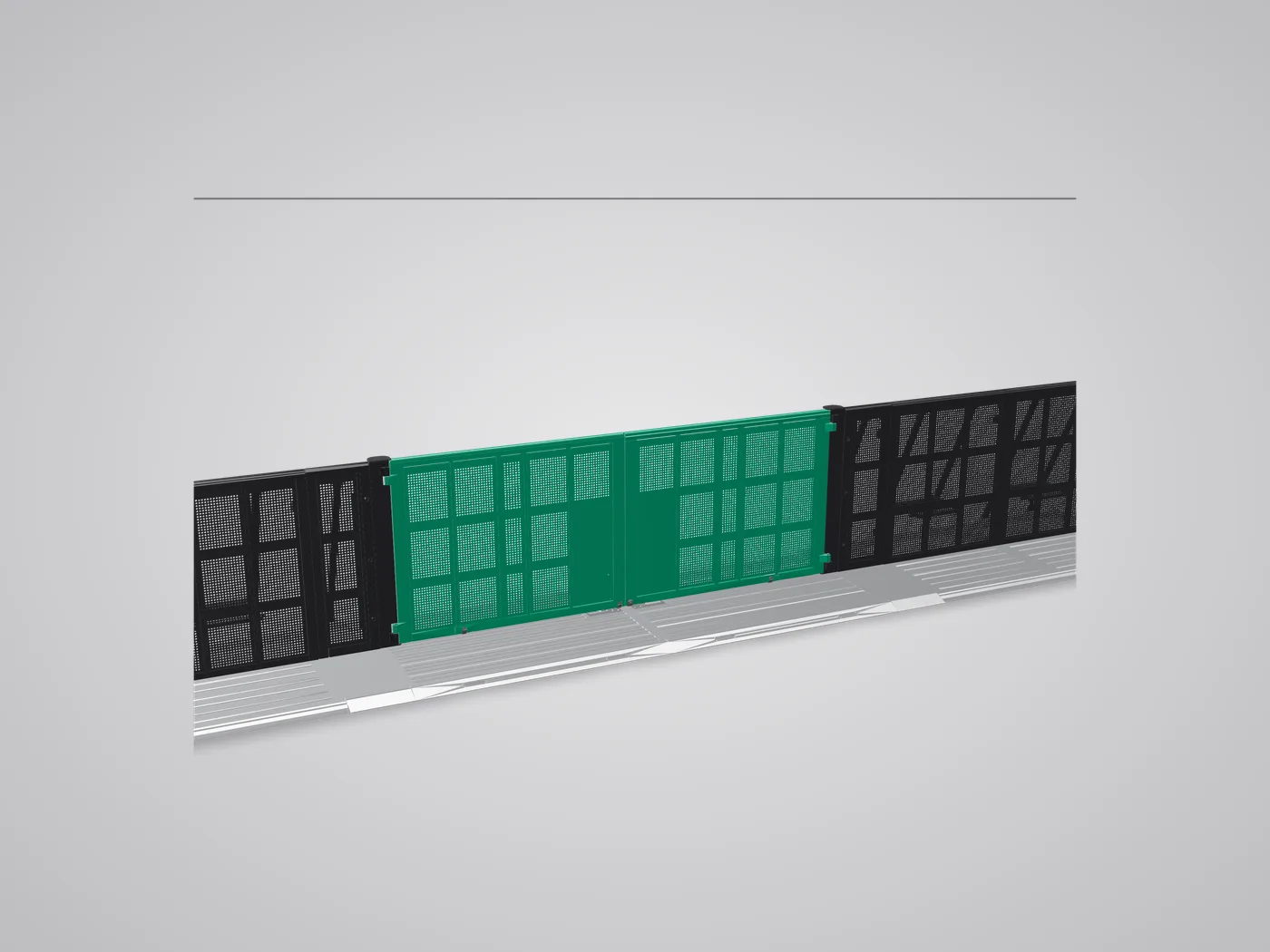

The doors are green aluminium, which makes the exit easy to identify within the line, whether the floor plates are black or silver.
In numbers
Footprint and operation of the Mega Exit in the line.
In the line
4.37m
From one end of the unit to the other, floor plates included.
Footprint
1.25m
As deep as the Straight Sections on either side.
Operation
1
One lever opens both doors.
Floor plates
2
Black or silver, to match the line around the exit.
Technical data
| Feature | Value |
|---|---|
| Opening width | 3.00 m |
| Length in the line × depth | 4.37 × 1.25 m |
| Doors | 2 × 1.50 m, swing both ways |
| Locking | interlock in the middle, opened with one manual lever |
| Height | on request |
| Opening angle | on request |
| Weight | on request |
| Door material | aluminium, green |
| Door posts | steel, black |
| Floor plates | black or silver, sloped at the front and back |
| Connection | connects to the adjoining Mojo Barrier sections |
Details can vary slightly between production series; your rental company will confirm the exact values. On request: value not yet published.
System
Straights
The standard section the Mega Exit sits between. The exit unit takes the place of roughly four of them in the line.
Gates

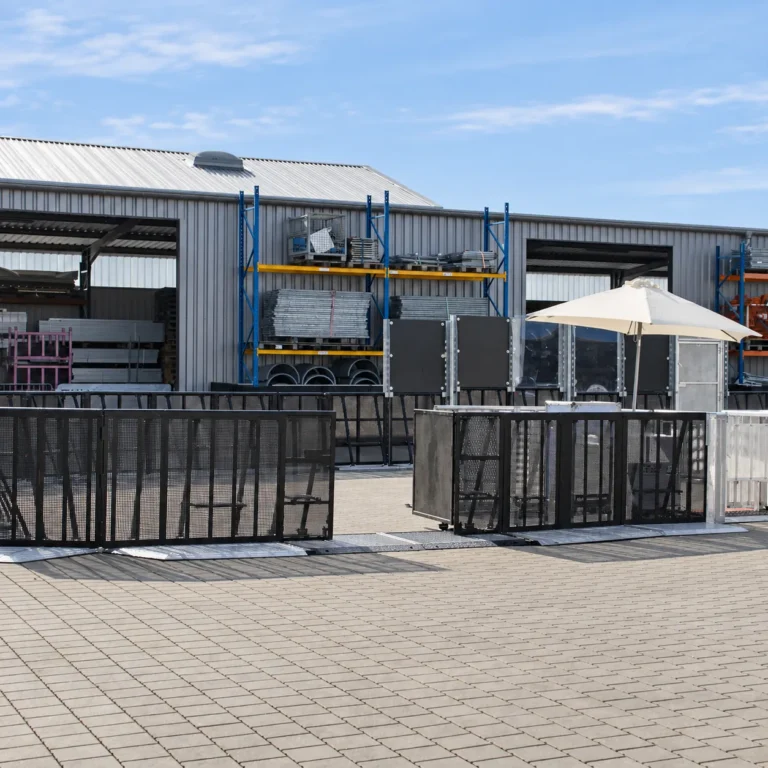

A 1.00 m lockable door for crew, pedestrians and most wheelchairs. Where the Mega Exit opens the line for vehicles, the Alternative Doors are for people on foot.
Entrances
Lanes for large queuing crowds, each with a gate width of 0.50 m. They leave space for security checks and ticket scanning at the entrance.
Entrances

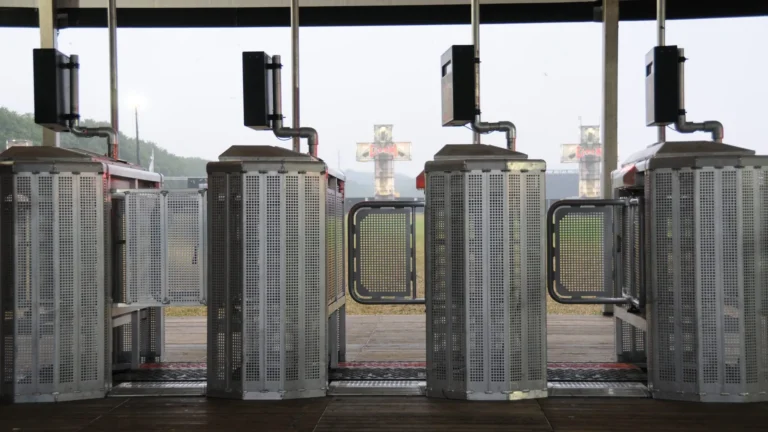

A turnstile with integrated ticket scanning that counts visitors in and out. It brings access control to the entrance lanes.
Certification
The Mega Exit has no certificate of its own. All documents are on the certification page.
FAQ
Two contacts, depending on the question:
An emergency exit gate is an opening in a temporary event barrier line that lets vehicles through and can also serve as a wide exit, while the rest of the line stays in place. In a Mojo Barrier line, this is the Mega Exit: a gate designed with event sites in mind and opened by hand.
| Need | Module |
|---|---|
| emergency vehicles and trucks | Mega Exit, 3.00 m opening |
| a wide exit through the line | Mega Exit |
| people on foot and most wheelchairs | Alternative Doors, 1.00 m door |
| cables through the line | Cable Gate |
| counting visitors at an entrance | Gatekeeper |
Yes, through the rental companies of the MOJO Holding Group, for festivals, concerts and other events on open sites. For questions about the gate, its locking or the data sheet, contact our team.
Hire
Tell the rental company in your country where vehicles need to pass the line. They place the Mega Exit between the Straight Sections of your layout.
