Features

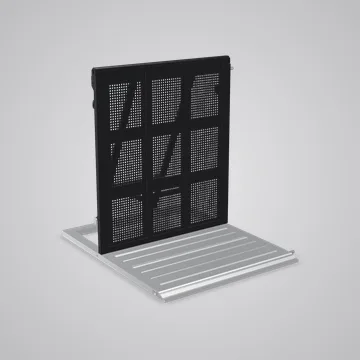

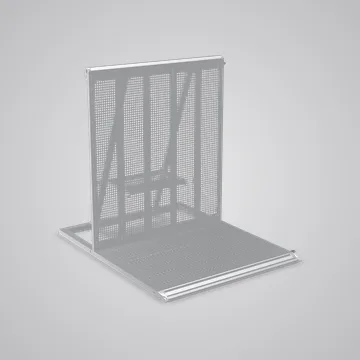

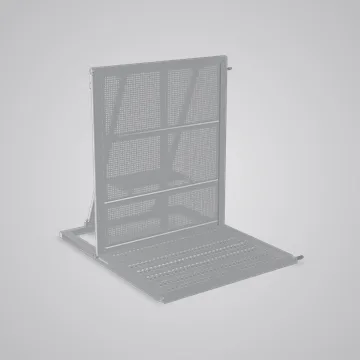

Each section is an aluminium upright on a floor plate, with braces at the back. It is designed so that the crowd standing on the floor plate holds the barrier down, whilst the braces take up the pressure from the front. Lines of these barriers, the core of the Mojo stage barrier range, run in front of the stage at concerts, festivals and stadium shows.

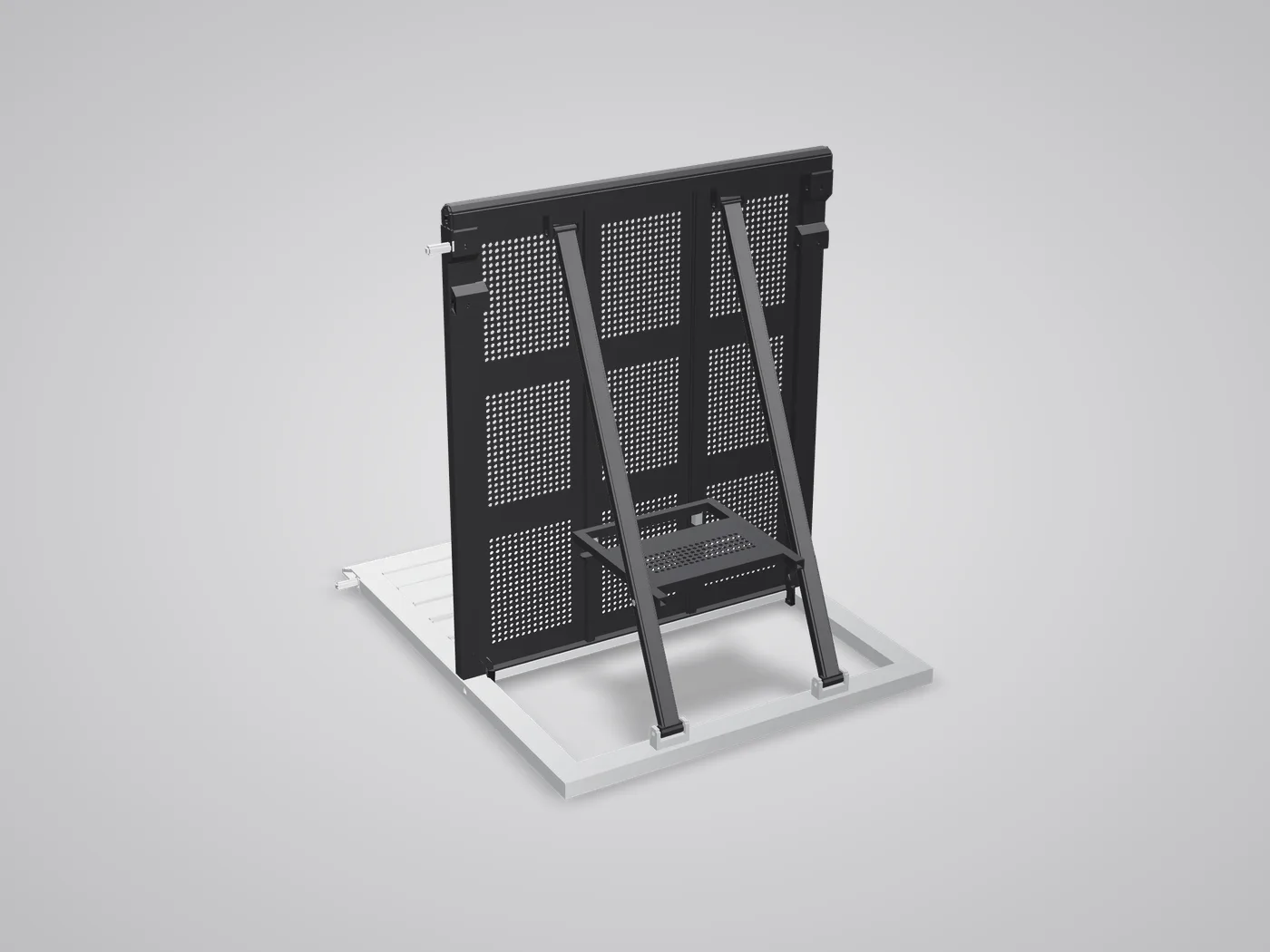

A rear step sits behind the upright, between the braces. From there, security staff have a clear view of the crowd and direct physical access to it. The space behind the upright and the step height differ slightly from one generation to the next.

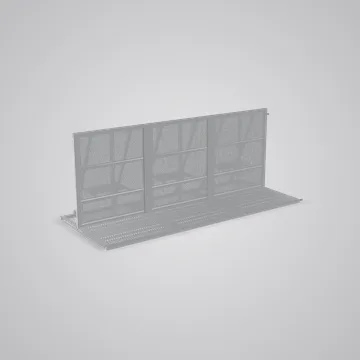

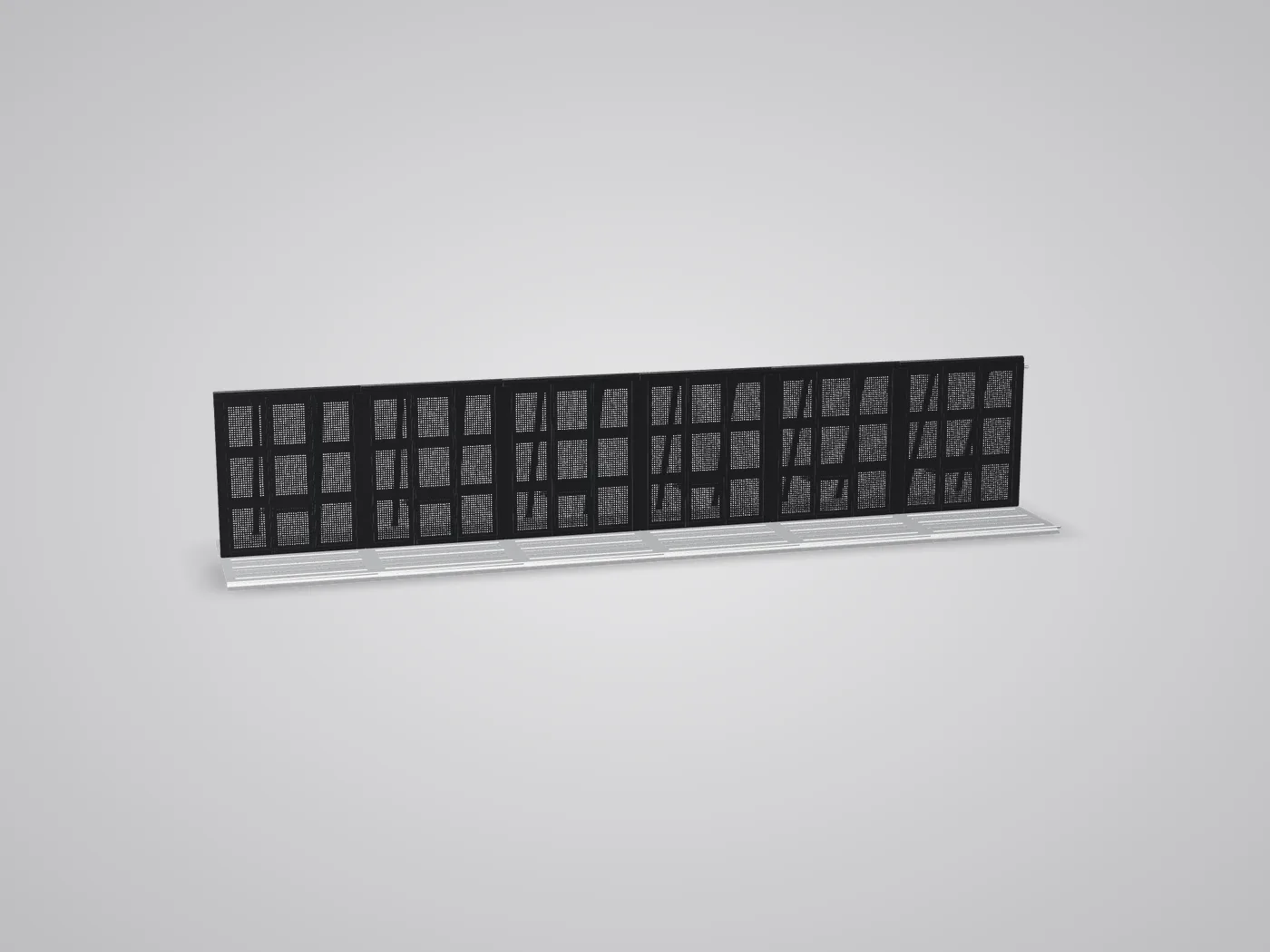

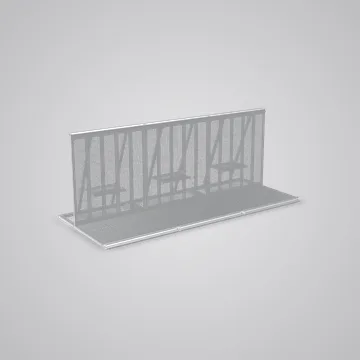

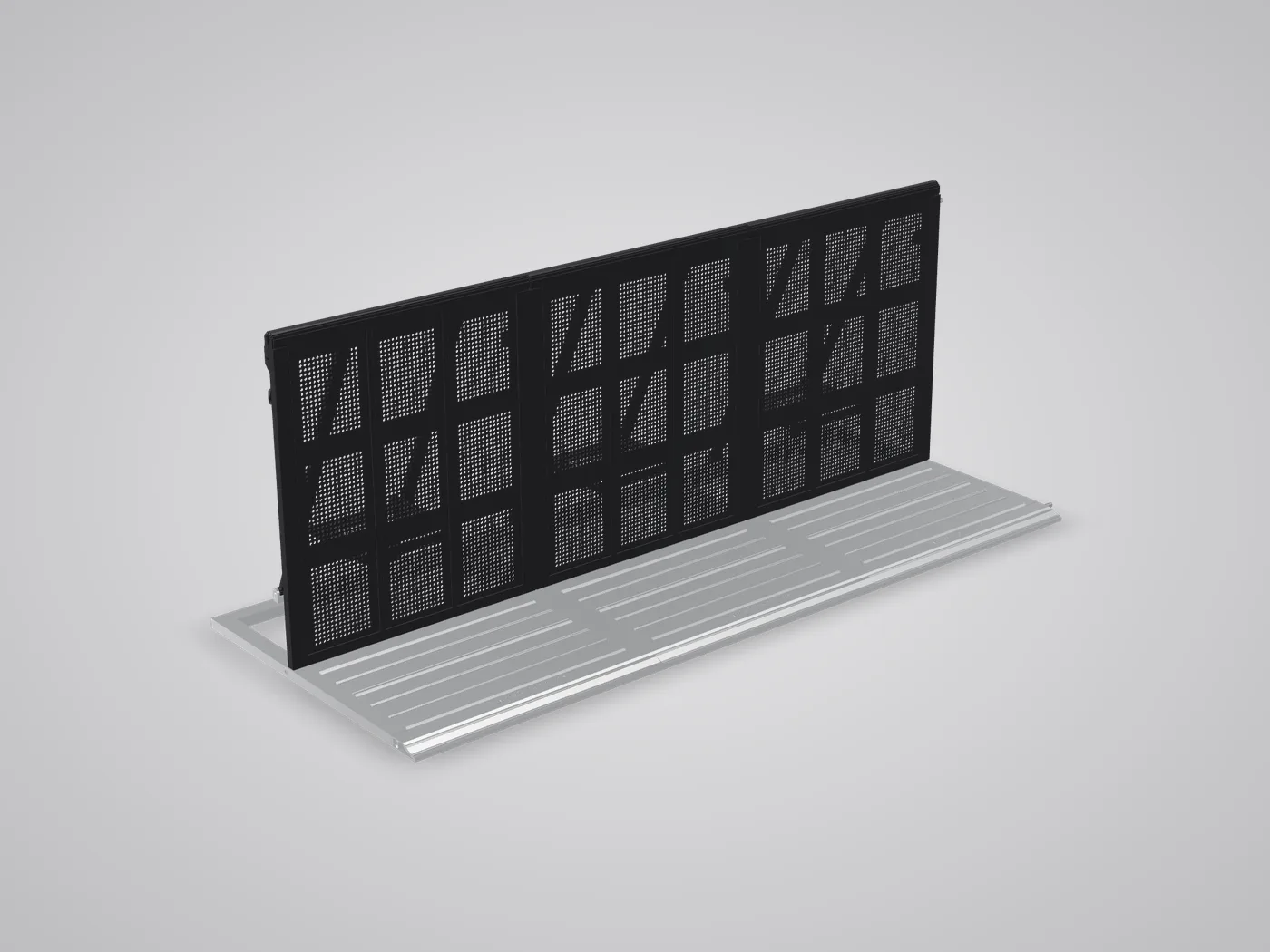

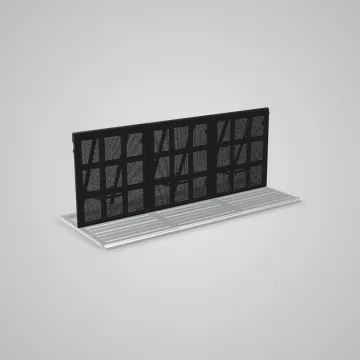

Sections join end to end on the 1.00 m grid and form a continuous, level barrier line. Location pins align each connection, also on uneven ground. How the sections are fixed to each other is slightly upgraded with the latest generation.
All three generations follow the same principle on the 1.00 m grid and differ only by a few centimetres. The G1 and G3 also come as a 0.50 m section for shorter runs in the line. The table below compares them value by value.
In numbers
Whichever generation stands in front of the stage, the barriers share one grid and differ only by a few centimetres.
All generations
1.00m
Lines are planned in whole metres, whichever generation is used.
G1 and G3
0.50m

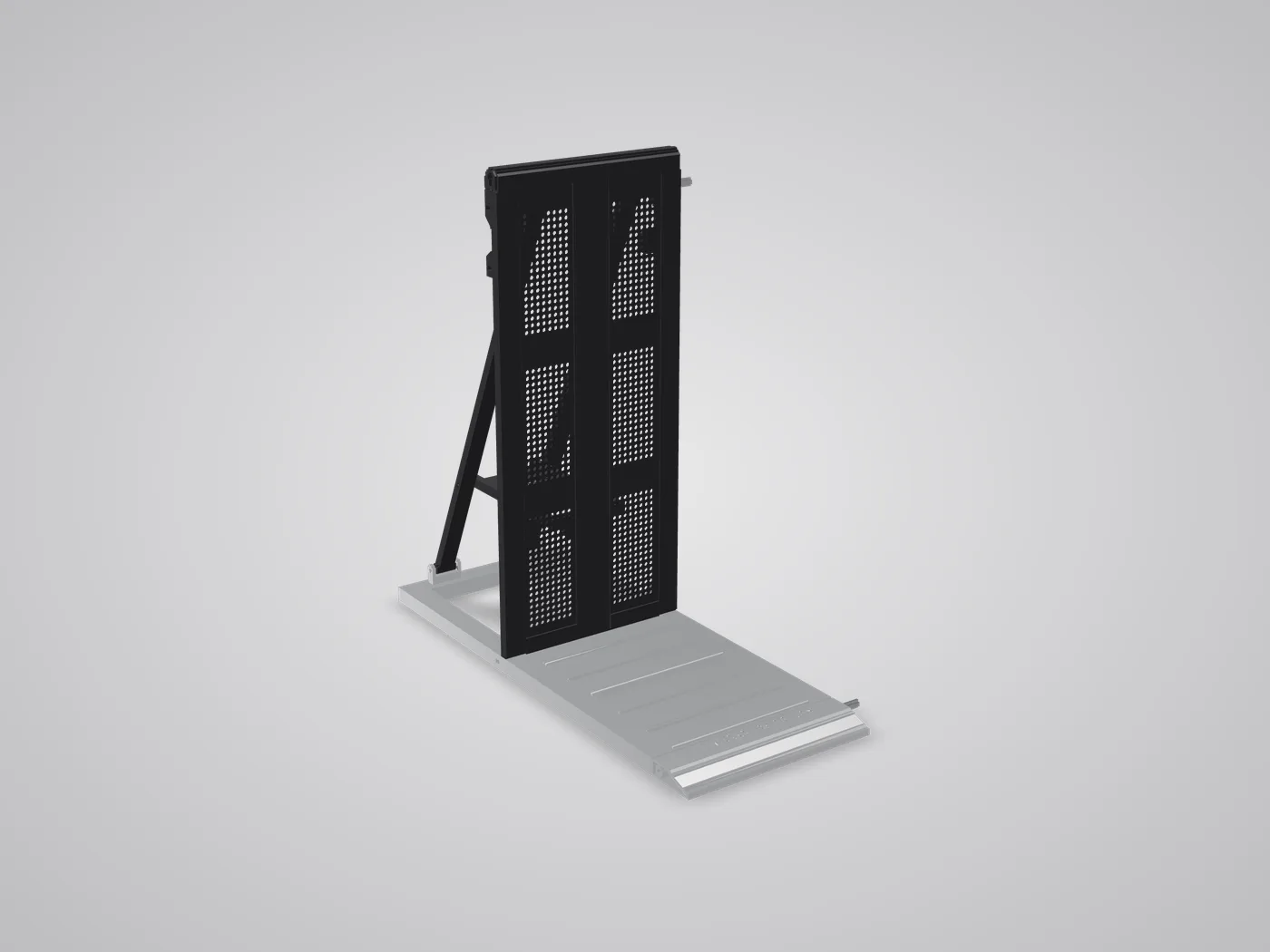

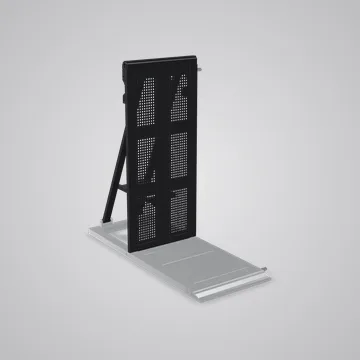

The G1 and G3 also come as a 0.50 m section for shorter runs in the line; the G3 half section weighs 24 kg.
Floor space
1.25 – 1.28m
The floor space a line takes up from the crowd side to the rear: 1.25 m for the G1 and G3, 1.28 m for the G2.
TÜV tested
5kN/m
TÜV Nederland tested specimens of the G1 and G2, TÜV NORD those of the G3, each at 5,000 N/m.
Technical data
| Feature | G1 | G2 | G3 |
|---|---|---|---|
| Grid length | 1.00 m or 0.50 m | 1.00 m | 1.00 m or 0.50 m |
| Height | 1.20 m | 1.18 m | 1.20 m |
| Depth | 1.25 m | 1.28 m | 1.25 m |
| Floor plate in front of upright | 0.73 m | 0.79 m | 0.72 m |
| Depth behind upright | 0.50 m | 0.47 m | 0.51 m |
| Step height | 0.41 m | 0.37 m | 0.33 m |
| Weight | 34 kg (1.00 m) | 34 kg | 35 kg (1.00 m), 24 kg (0.50 m) |
| Transport | 10 barriers per transport cart | 12 barriers per transport cart | 10 barriers per transport cart |
| Material | aluminium | aluminium, stainless steel pins | aluminium, steel fittings, stainless steel connectors |
| Finish | silver or black upright | silver or black upright | black, silver floor plate |
| Tested load | 5 kN/m (G1 specimens) | 5 kN/m (G2 specimens) | 5 kN/m (G3 specimens) |
| Certificate | 2013-A-168-C1 | 2013-A-168-C0 | TÜV-NL-2410-D-228 |
System
Corners
Corners with an angle that is set on site: up to +60° on the Vario and from −90° to +90° on the Flex. They let the barrier line follow the layout of the venue where the fixed steps do not fit.
Corners
Turns the line by 22.5° in one defined step, as a positive or negative corner. A colour mark on the braces tells them apart: pink for positive, white for negative.
Gates
Sections with a hinged door, so crew can pass and cables can cross the line. The Snake Runner door is approx. 0.50 m wide, the Snake Gate door 0.76–0.85 m.
Gates
A door section that routes cables, for example to front-of-house areas or delay towers, through the barrier line. They pass through a 110 mm opening below its 0.87 m door.
Certification
Each generation of the Straight Section has its own certificate from a body of the TÜV NORD Group. For the G1 and G2, TÜV Nederland QA tested strength, tipping and sliding at 5,000 N/m without deformation. For the G3, TÜV NORD Nederland confirmed the 5 kN/m requirement of section 7.5 of "Temporary Demountable Structures", 4th edition, Institution of Structural Engineers. Each certificate applies only to the tested specimens.
Two earlier TNO reports document the tests on the steel barrier of 1996 and on the aluminium prototype of 1998 that led to the G1. All documents are on the certification page.
MOJO Rental, named on the G3 certificate, is part of the MOJO Holding Group, like Mojo Barriers BV.
Downloads
PDF · 5 pages
Dimensions, weight, rear step and the 2013 TÜV Nederland certificate of the oldest generation.
PDF · 5 pages
Dimensions, the connection, transport on carts of 12 and the 2013 certificate.
PDF · 5 pages
Dimensions of the 1.00 m and 0.50 m sections, the black finish and the 2025 TÜV NORD certificate.
FAQ
Two contacts, depending on the question:
It is the straight element that most of a Mojo barrier line consists of, standing between the stage and the audience. A line of these crowd control barriers can run for many metres, and corners, gates and doors complete it wherever the layout of the venue needs them. Read more on how a Mojo Barrier® works.
The name Mojo Barrier is widely used in the industry as a generic term for aluminium stage barriers. It goes back to Mojo Barriers BV, which grew out of Mojo Concerts in the Netherlands and began with steel barriers in 1988.
The 1.00 m grid keeps the count simple:
Corners and gates come on top; the rental company will check the full layout.
The certificates name the modules tested together with each Straight Section. On them, the G1 and G2 carry the titles MOJO G1 Barrier Alu and MOJO G2 Barrier Alu.
| Module | Generation |
|---|---|
| Straight 0.50 m | G1, G3 |
| Vario & Flex Corners | G1, G2, G3 |
| Fixed Corners 22.5° and 45° | G1 |
| Snake Runner & Snake Gate | G1 |
| Cable Gate | G3 |
A certificate applies only to the tested specimens and does not by itself ensure that a whole line is safe on site; that also depends on layout, ground and set-up.
Mojo Barriers BV does not sell its barriers. They are hired through the rental companies of the MOJO Holding Group; for data sheets and certificates, contact our team.
Hire
Send the rental company in your country the length of your front-of-stage line and the date of your event. They plan the Straight Sections, corners and gates with you.
