01 / 04 · Counting
Counts on its own, or with ticket scanning
On its own, Gatekeeper counts the people entering or leaving and, if required, limits their number. With integrated ticket scanning, it becomes an automated, controlled entrance.
Loading 3D model … 0 %
Features
A turnstile barrier for event entrances
02 / 04 · Turnstile
A physical barrier at the entrance
The turnstile forms a physical barrier to control access to the event or designated area. Its design discourages illegal access to the site.
03 / 04 · Software
Control from one workstation
Specialist software controls all entrances and exits from a central computer system and lets staff respond to ticket problems from one place. Its accurate capacity data in real time makes the number of people inside easy to follow.
04 / 04 · Scanning
Scanning hardware in the lane
Gatekeeper can be adapted and equipped with ticket-scanning hardware that reads tickets at the turnstile. This can replace hand scanners and their operators and reduce the staff needed for ticket checks.
In numbers
Three numbers for one lane
Approximate footprint and turnstile of one Gatekeeper unit.

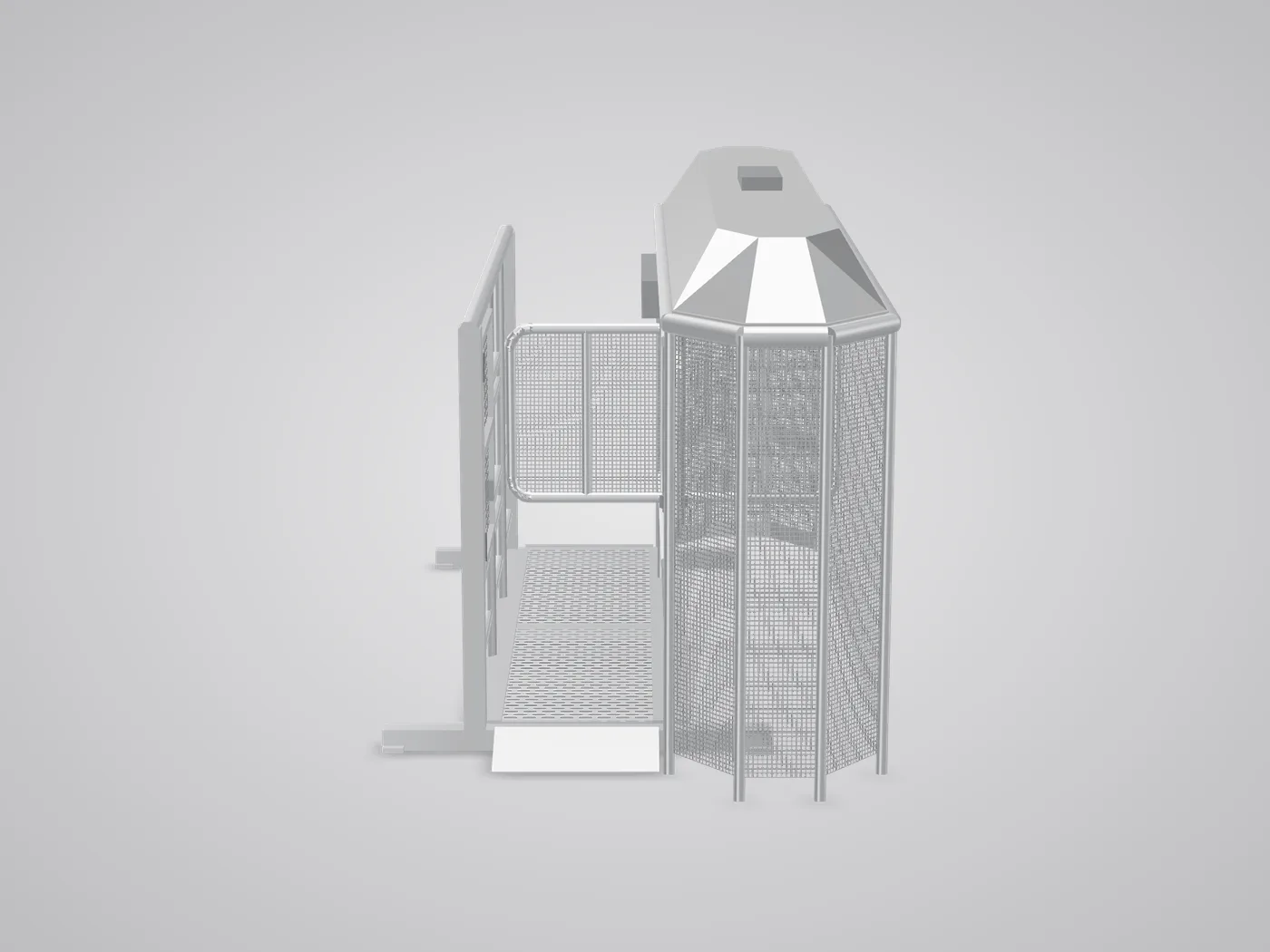

Lane
2.28m
Lane length
Approximate length of one lane.
Lane
1.07m
Lane width
Approximate width of one lane.

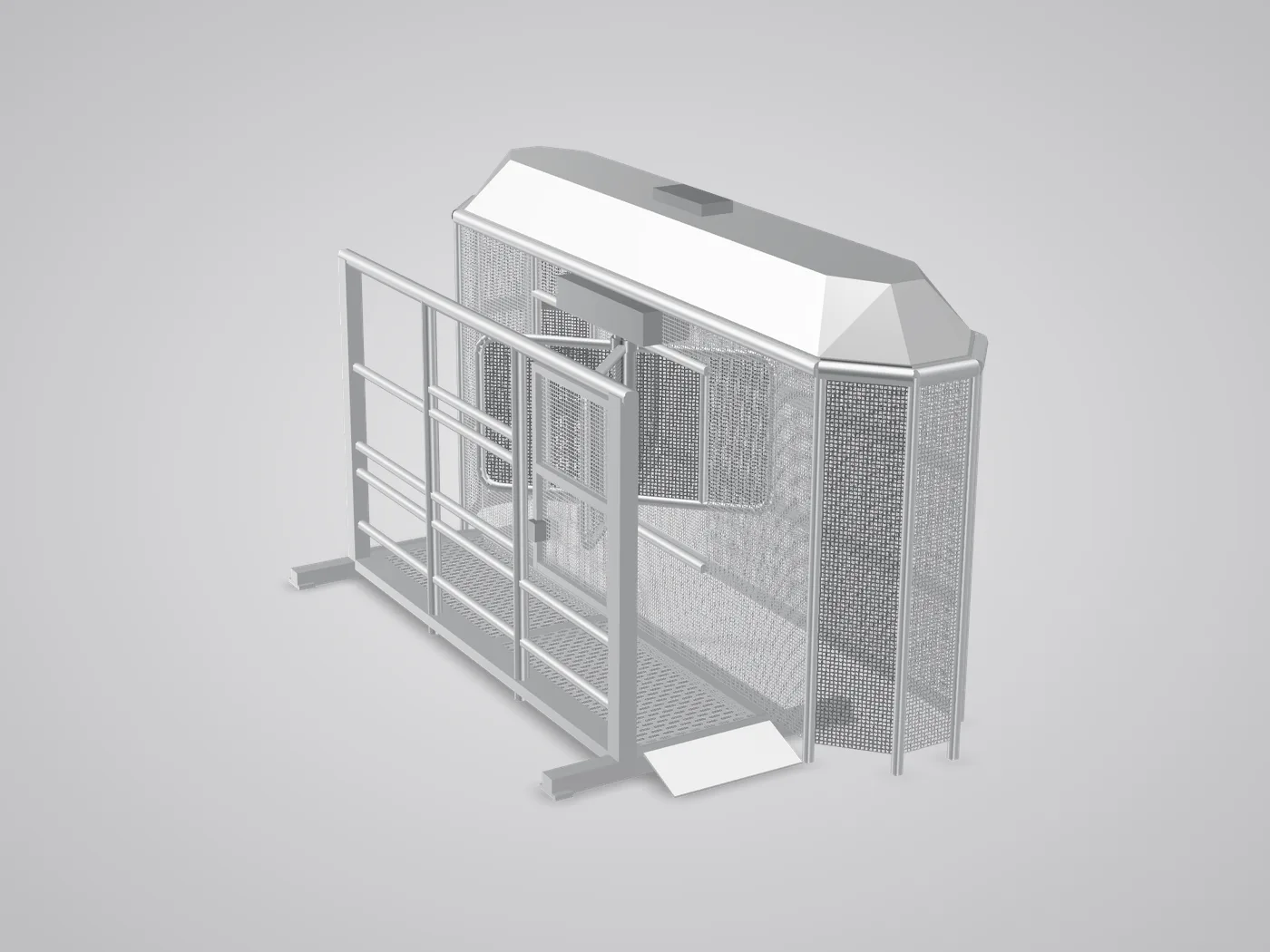

Turnstile
4
Turnstile arms
A cross-shaped turnstile with four arms.
Technical data
Technical data
| Feature | Value |
|---|---|
| Lane (length × width) | approx. 2.28 × 1.07 m |
| Turnstile | cross-shaped, four arms, automatic locking |
| Scanning | integrated ticket scanning; can hold ticket-scanning hardware |
| Control | one central computer system, real-time capacity data |
| Settings | Count · Limit · Differentiate |
| Emergency | emergency override button |
| Weather | weather-resistant |
| Connection | can be combined with the Mojo Barrier® system |
| Height | on request |
| Weight | on request |
Details can vary slightly between production series; your rental company will confirm the exact values. On request: value not yet published.
System
Works with four modules
Straights
Straight Section
The basic section of the Mojo Barrier line. It comes in silver and black finishes, depending on the generation.
Entrances
Line-up Gate
Lanes for large queuing crowds, each with a gate width of 0.50 m. They leave room for security checks and ticket collection.
Gates
Mega Exit
Two doors that open the line to 3.00 m for emergency vehicles and trucks. The gate is opened by hand with one manual lever.
Gates
Alternative Doors
A 1.00 m lockable door suitable for crew, pedestrians and most wheelchairs. It offers a wider way through the line than a turnstile lane.
Certification
Independent testing
The Gatekeeper has no certificate of its own. All documents are on the certification page.
FAQ
Questions about the Gatekeeper
Two contacts, depending on the question:
- Lanes for your layout and hire: the rental company in your country
- Data sheets and product information: Mojo Barriers BV, by phone or email
Turnstile barrier gates are set into the barrier line at the entrance of an event site or facility, so that each person entering or leaving passes through a turnstile. Their purpose is to count visitors and, where needed, stop entry at a set number. In a Mojo Barrier line, this is the Gatekeeper, part of queue and crowd control.
- Count: counts the people coming in
- Limit: locks the turnstile automatically once capacity is reached
- Differentiate: counts people in and out in real time
| Need | Module |
|---|---|
| counting and limiting visitors at a turnstile gate, with integrated ticket scanning | Gatekeeper |
| queuing lanes with room for security checks | Line-up Gate, 0.50 m lane |
| crew, pedestrians and most wheelchairs | Alternative Doors, 1.00 m door |
| emergency vehicles and trucks | Mega Exit, 3.00 m opening |
| cables through the line | Cable Gate |
- how many lanes each entrance needs for the expected crowd
- the capacity limit of the site or area, to review with your rental company for the Limit setting
- whether tickets are scanned at the turnstile or by hand
- who will operate the central workstation during the event
- stock at the rental company for the event dates

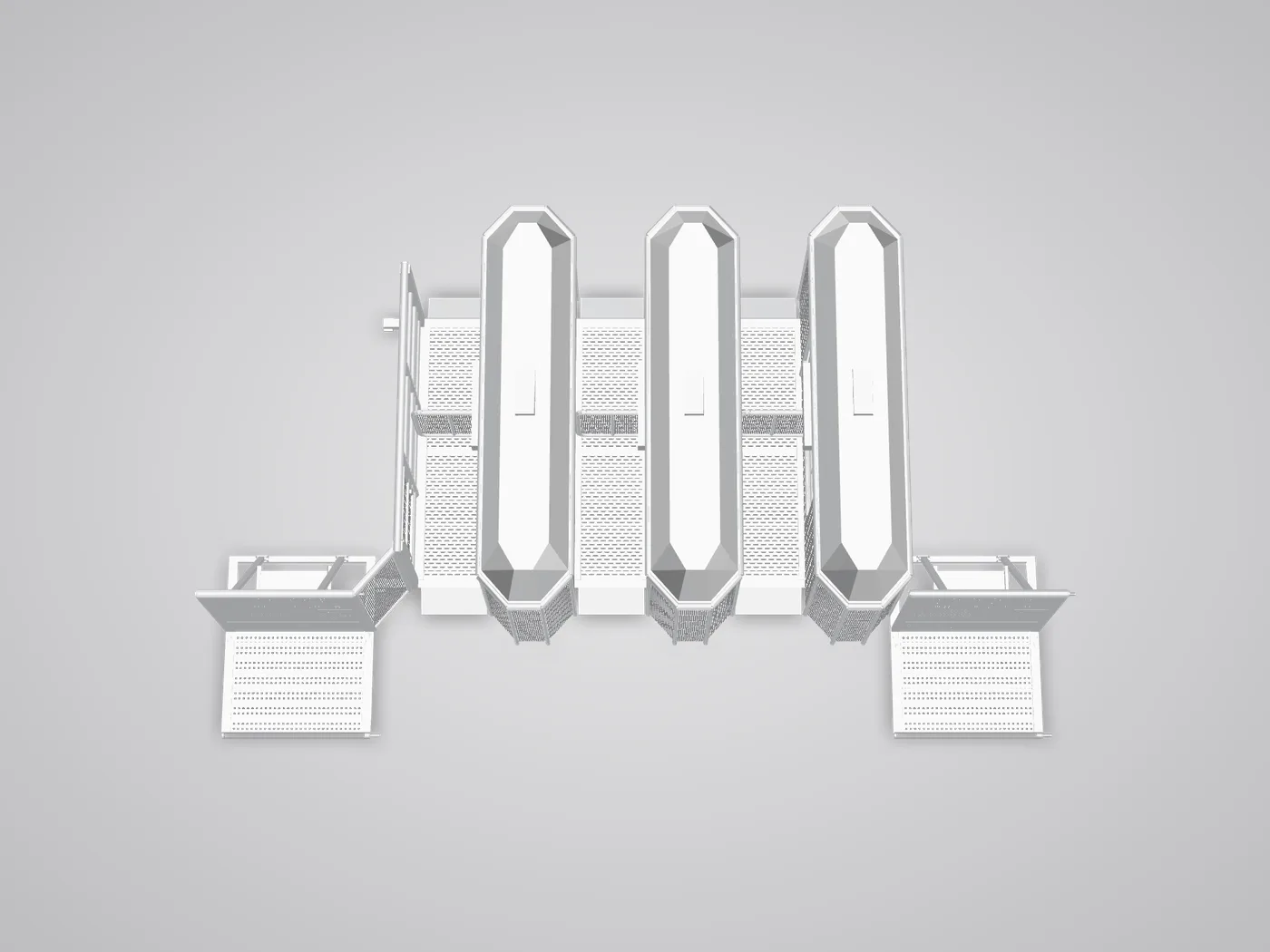

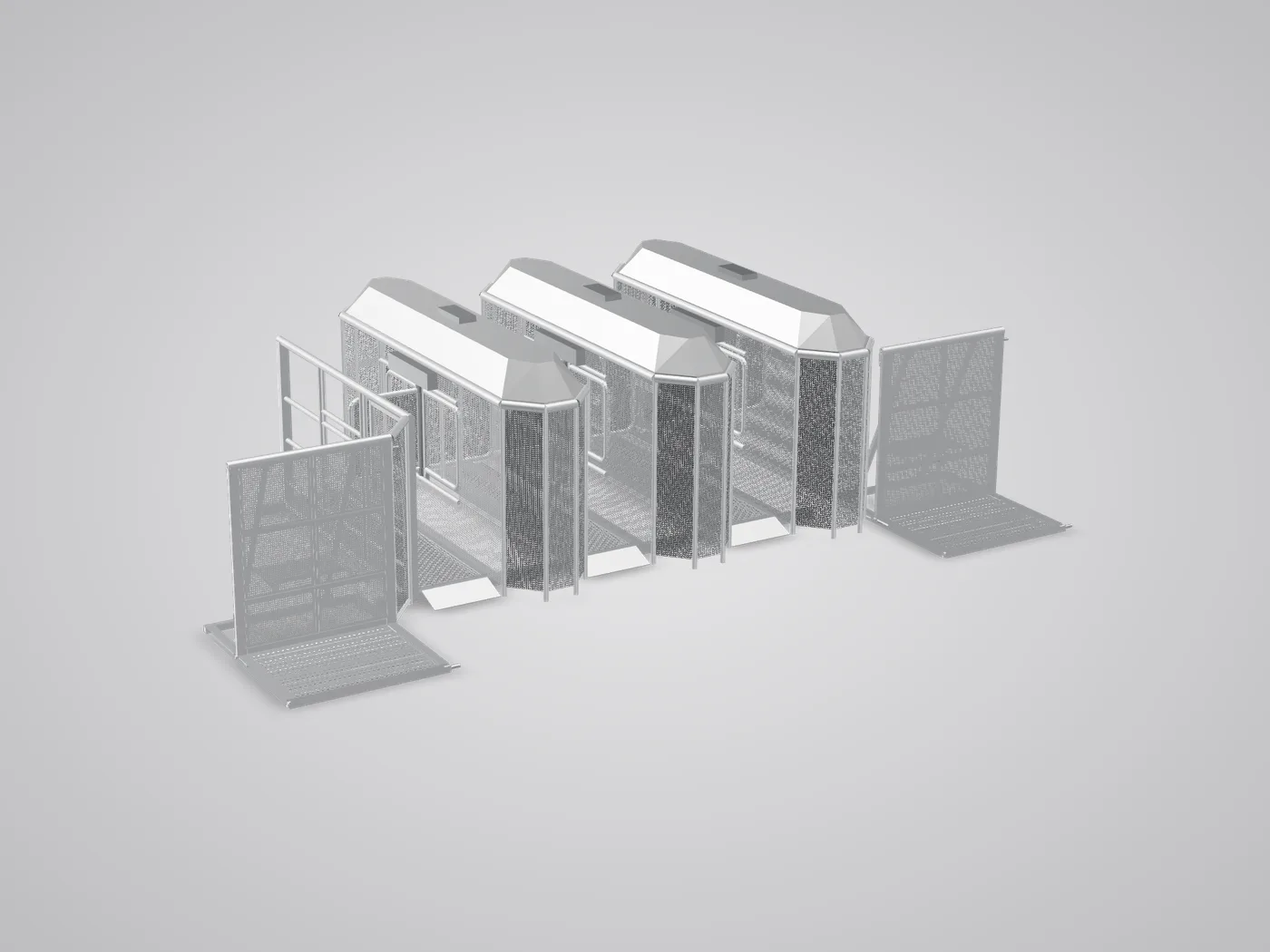

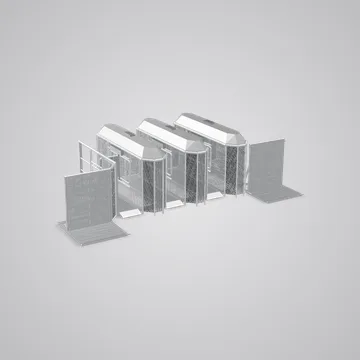

Yes. Several Gatekeeper units can stand side by side as a row of entrance lanes, with Mojo barriers such as the Straight Section at both ends. In addition, combined with the Mojo barrier system, Gatekeeper links entrance points at different locations, for example a main entrance and the access to VIP or staff areas.
Yes, through the rental companies of the MOJO Holding Group, for festivals, venues and a variety of other events. To learn more about turnstile lanes in your site layout or the data sheet, contact our team.
Hire
Find the Gatekeeper near your event
Tell the rental company in your country how many entrance lanes you need and state which areas have a capacity limit. They add the Gatekeeper units to your barrier layout.
